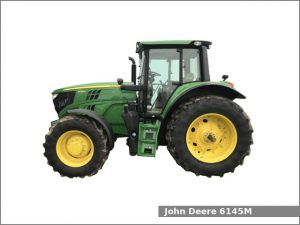

John Deere 6145M (2020-)

John Deere 6145MThe John Deere 6145M is a 2WD/4WD row-crop tractor from the 6M series. This tractor has been manufactured by John Deere in Mannheim, Baden-Württemberg, Germany since 2015. This second generation is manufactured from 2020.

The JD 6145M is equipped with one of two engines and one of four transmission variants.

The tractor could be equipped with the following engines:

  • John Deere PowerTech PSS. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged aftercooled diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 147.0 PS (108.1 kW; 145.0 HP) at 2,100 rpm of output power.
  • John Deere 4045HL556 (optional). It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine. The cylinder bore is 105.0 mm (4.13 in) and the piston stroke is 127.0 mm (5 in). This engine produced 147.0 PS (108.1 kW; 145.0 HP) at 2,100 rpm of output power.

The John Deere 6145M is equipped with power steering, hydraulic wet disc brakes, cab (standard) with air-conditioning and 269.9 liters (71.3 US gal.; 59.4 Imp. gal) fuel tank.

John Deere 6145M Specifications

General Specifications
Model John Deere 6145M
Length 4,720 mm (185.8 in)
Width
Height 2,930 mm (115.4 in)
Wheel base 2,760 mm (108.7 in)
Ground clearance (front axle) 530 mm (20.9 in)
Weight 6,200 kg (13,669 lbs)
Fuel tank capacity 269.9 liters (71.3 US gal.; 59.4 Imp. gal)
Battery 12V, 154Ah or 174Ah (optional)
Cabin type Cab (standard) with air-conditioning
Engine
Engine model John Deere PowerTech PSS
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower 147.0 PS (108.1 kW; 145.0 HP) at 2,100 rpm
Starter Electric
Coolant capacity: 27.0 L (28.5 US. qt, 23.8 Imp. qt.)
Engine
Engine model John Deere 4045HL556
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower 147.0 PS (108.1 kW; 145.0 HP) at 2,100 rpm
Torque 680.0 N·m (69.3 kg·m, 501.2 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 16.0 L (16.9 US. qt, 14.1 Imp. qt.)
Coolant capacity: 27.0 L (28.5 US. qt, 23.8 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Planetary
Differential lock Electro-hydraulic front and rear
Transmission model PowrQuad
Transmission type Four-speed power shift
Gears 16 forward and 16 reverse
Speed Forward: 30.1 kmh (18.7 mph) Reverse: 31.3 kmh (19.5 mph)
Transmission model PowrQuad/AutoQuad
Transmission type Four-speed power shift
Gears 24 forward and 24 reverse
Speed Forward: 39.3 kmh (24.4 mph) Reverse: 40.7 kmh (25.3 mph)
Transmission model CommandQuad
Transmission type Four-speed power shift
Gears 24 forward and 24 reverse
Speed Forward: 39.3 kmh (24.4 mph) Reverse: 40.7 kmh (25.3 mph)
Transmission model AutoPowr
Transmission type Infinitely variable transmission (IVT)
Gears Infinite forward and reverse
Tires
Front tires Ag: 540/65R28
Rear tires Ag: 650/65R38
Three-Point Hitch
Category IIIN
Control type Electronic lower link draft sensing
Lift capacity 5000 kg (11,025 lbs)
Optional: 5695 kg (12,556 lbs)
Front Hitch
Category IIIN
Lift capacity 4,400 kg (9700 lbs)
PTO (Power take-off shaft)
Front PTO type Independent with electro-hydraulic wet disc clutch
Front PTO speed 1000
Rear PTO type Independent with electro-hydraulic wet disc clutch
Rear PTO speed 540/1000 (1.375)
Hydraulic system
Hydraulic type Closed center pressure and flow compensated
Valves Rear: 2 to 4
Front: 0 to 3
Pump flow 30.0 gpm (113.6 lpm)
