John Deere 7280R

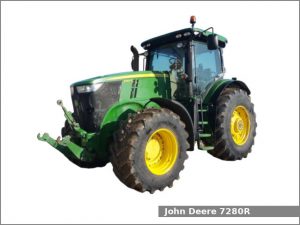

John Deere 7280RThe John Deere 7280R is a 4WD row-crop tractor from the 7R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2011 to 2013. The John Deere 7280R is equipped with a 9.0 L (548.0 cu·in) six-cylinder diesel engine and a infinitely variable transmission with infinite forward and reverse gears.

The JD 7280R row-crop tractor used the John Deere PowerTech PVX engine. It is a 9.0 L, 8,980 cm2, (548.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 284 PS (208.8 kW; 280.0 HP) at 2,100 rpm of output power.

The John Deere 7280R is equipped with hydrostatic power or ActiveCommand steering (optional), CommandView II cab and 522.3 liters (138 US gal.; 114.9 Imp. gal) fuel tank.

John Deere 7280R Specifications

General Specifications
ModelJohn Deere 7280R
Wheel base2,920 mm (115 in)
Weight12,330 kg (27,183 lbs)
Fuel tank capacity 522.3 liters (138.0 US gal.; 114.9 Imp. gal)
Optional: 545.0 liters (144.0 US gal, 119.9 Imp. gal)
BatteryTwo 12V, CCA 925A
Cabin typeCommandView II cab
Engine modelJohn Deere PowerTech PVX
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement9.0 L, 8,980 cm2, (548.0 cu·in)
Bore and stroke118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio16.0:1
Horsepower284 PS (208.8 kW; 280.0 HP) at 2,100 rpm
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power or ActiveCommand Steering (optional)
Differential lock Full-locking electrohydraulic rear
Limited slip front axle.
Electrohydraulic on TLS Plus front axle with front brakes
Transmission modelJohn Deere IVT
Transmission typeInfinitely variable transmission
GearsInfinite forward and reverse
Front tires (max. size) Ag: 620/75R30
Rear tires (max. size) Ag: 900/60R42
Three-Point Hitch
Control typeElectrohydraulic sensing
Lift capacity (at ends) 6,895 kg (15,200 lbs)
Optional: 7,850 kg (17,300 lbs)
Front Hitch
CategoryIIIN (optional)
Lift capacity (at ends)5,200 kg (11,465 lbs)
PTO (Power take-off shaft)
Front PTO typeOptional
Front PTO speed 1000 (1.375)
1000 (1.75)
Rear PTO typeIndependent
Rear PTO speed 1000 (1.75)
540/1000 (1.375/1.75)
540/540E/1000 (1.375/1.75)
540/540E/1000/1000E (1.375/1.75)
Hydraulic system
Hydraulic typeClosed-center pressure and flow compensated (PFC)
Pressure2958 psi (204.0 bar)
Valves Rear: 6 (max)
Mid: 0 to 2
Pump flow 43.0 gpm (162.8 lpm)
Optional: 59.0 gpm (223.3 lpm)
SCV flow35.0 gpm (132.5 lpm)
