John Deere 9360R

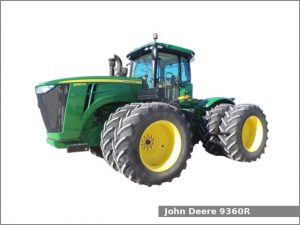

John Deere 9360RThe John Deere 9360R is a 4WD four-wheel drive tractor from the 9R/RT series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2012 to 2014. The John Deere 9360R is equipped with a 9.0 L (548.7 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 24 forward and 6 reverse gears or a full power shift transmission with 18 forward and 6 reverse gears.

The JD 9360R four-wheel drive used the John Deere PowerTech PSX engine. It is a 9.0 L, 8,991 cm2, (548.7 cu·in) six-cylinder turbocharged diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 365.2 PS (268.5 kW; 360.0 HP) at 2,100 rpm of output power.

The John Deere 9360R is equipped with hydrostatic power steering, hydraulic wet disc brakes, CommandView II cab (standard) and 1324.8 liters (350 US gal.; 291.4 Imp. gal) fuel tank.

John Deere 9360R Specifications

General Specifications
ModelJohn Deere 9360R
Length7,160 mm (281.9 in)
Width3,040 mm (119.7 in)
Height (cab)3,630 mm (142.9 in)
Wheel base3,500 mm (137.8 in)
Weight (operating)17,100 kg (37,699 lbs)
Fuel tank capacity1324.8 liters (350 US gal.; 291.4 Imp. gal)
BatteryThree 12V, CCA 925A
Cabin typeCommandView II cab (standard)
Engine
Engine modelJohn Deere PowerTech PSX
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement9.0 L, 8,991 cm2, (548.7 cu·in)
Bore and stroke118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio16.0:1
Horsepower365.2 PS (268.5 kW; 360.0 HP) at 2,100 rpm
StarterElectric
Transmission and chassis
Chassis4×4 articulated 4WD
Steering typeHydrostatic power
BrakesHydraulic wet disc
Final driveInboard planetary
Differential lockFully-locking electro-hydraulic
Transmission modelJohn Deere PowrSync
Transmission typePartial power shift with hydraulic wet disc clutch
Gears24 forward and 6 reverse
Speed Forward: 38.6 kmh (24 mph) Reverse: 12.3 kmh (7.6 mph)
Transmission modelJohn Deere PowerShift
Transmission typeFull power shift with hydraulic wet disc clutch
Gears18 forward and 6 reverse
Speed Forward: 40.2 kmh (25 mph) Reverse: 12.8 kmh (8 mph)
Tires
Front tires Ag: 620/70R42
Rear tires Ag: 620/70R42
Three-Point Hitch
CategoryIVN/III, IVN/IV
Control typeElectronic draft sensing
Lift capacity 6,940 kg (15,300 lbs)
Optional: 9,070 kg (20,000 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed1000 rpm
Hydraulic system
Hydraulic typeClosed center pressure flow compensated (PFC)
Pressure2900 psi (200 bar)
Valves4 to 6
Pump flow 44.0 gpm (166.6 lpm)
PowerShift: 48.0 gpm (181.7 lpm)
High-Flow: 78.0 gpm (295.3 lpm)
SCV flow 37.0 gpm (140.0 lpm)
19.1mm SCV: 45.0 gpm (170.3 lpm)
