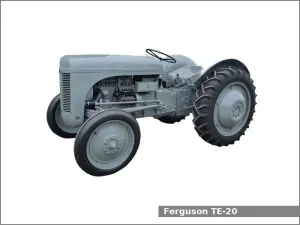

Ferguson TE-20

Ferguson TE-20The Ferguson TE20 is a 2WD utility tractor manufactured by Ferguson in Coventry, England from 1946 to 1948. The Ferguson TE-20 is equipped with a 2.0 L (120.0 cu·in) four-cylinder gasoline engine and a unsynchronized gear transmission with 4 forward and 1 reverse gears.

The Ferguson TE20 utility tractor used the Continental Z-120 engine. It is a 2.0 L, 1,966 cm2, (120.0 cu·in) four-cylinder natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke.

The Ferguson TE-20 is equipped with manual steering, differential mechanical expanding shoe brakes, an open operator station and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

Ferguson TE-20 Specifications

General Specifications
Model Ferguson TE-20
Length 2,920 mm (115 in)
Width 1,610 mm (63.4 in)
Height 1,320 mm (52 in)
Wheel base 1,770 mm (69.7 in)
Weight (operating) 1,250 kg (2,756 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model Continental Z-120
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.0 L, 1,966 cm2, (120.0 cu·in)
Bore and stroke 81.0 mm X 95.0 mm (3.19 in X 3.74 in)
Horsepower 0 PS ( kW; 0 HP) at rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical expanding shoe
Transmission model
Transmission type Unsynchronized gear
Gears 4 forward and 1 reverse
Speed Forward: 18.5 kmh (11.5 mph) Reverse: 5.4 kmh (3.4 mph)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 11-28
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 540 rpm
