John Deere L111

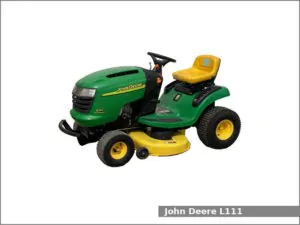

John Deere L111The John Deere L111 is a 2WD lawn tractor from the L100 series. This tractor was manufactured by John Deere in 2005. The John Deere L111 is equipped with a 0.7 L two-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The JD L111 lawn tractor used the Briggs & Stratton 40 engine. It is a 0.7 L, 655 cm2, (39.97 cu·in) two-cylinder natural aspirated gasoline engine with 75.4 mm (2.97 in) of the cylinder bore and 73.5 mm (2.89 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) of maximum output power.

This lawn tractor is equipped with manual steering, open operator station and 7.9 liters (2.1 US gal.; 1.7 Imp. gal) fuel tank. The L111 lawn tractor used a mid-mount 42 in (1,060 mm) mower deck with 2-blades with manual lift.

John Deere L111 Specifications

General Specifications
Model John Deere L111
Length 1,750 mm (68.9 in)
Width 910 mm (35.8 in)
Height 980 mm (38.6 in)
Wheel base
Weight 210 kg (463 lbs)
Fuel tank capacity 7.9 liters (2.1 US gal.; 1.7 Imp. gal)
Battery 12V Type BCI Group U1
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 40
Engine type Four-stroke, air-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 655 cm2, (40.0 cu·in)
Bore and stroke 75.4 mm X 73.5 mm (2.97 in X 2.89 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP)
Starter Electric
Oil type SAE 10W-30; API SG or SF
Oil capacity 1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plug gap 0.76 mm (0.030 in)
Intake valve clearance 0.076-0.127 mm (0.003-0.005 in)
Exhaust valve clearance 0.13-0.18 mm (0.005-0.007 in.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Tuff Torq T40
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 5.1 (3.2 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×8.0-8
PTO (Power take-off shaft)
Middle PTO type Independent with mechanical clutch
Middle PTO spped
