John Deere X950R

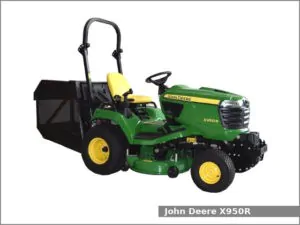

John Deere X950RThe John Deere X950R is a 2WD rear-discharge lawn mower from the X900 series. This tractor has been manufactured by John Deere in Horicon, Wisconsin, USA since 2014. The JD X950R is equipped with a 1.1 L (68.1 cu·in) three-cylinder diesel engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere X950R rear-discharge mower used the Yanmar 3TNV76 engine. It is a 1.1 L, 1,116 cm2, (68.1 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 24.9 PS (18.3 kW; 24.5 HP) of output power.

The John Deere X950R is equipped with power steering, wet disc brakes, two-post foldable ROPS, or Cab (optional), and 19.7 liters (5.2 US gal.; 4.3 Imp. gal) fuel tank.

Following attachments are available for the JD X950R rear-discharge mower:

  • Mid-mount John Deere: 48 in (1,210 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere: 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
  • Front-mount John Deere: 47 in (1,190 mm) snowblower

John Deere X950R Specifications

General Specifications
Model John Deere X950R
Length 3,700 mm (145.7 in)
Width 1,250 mm (49.2 in)
Height ROPS: 2,100 mm (82.7 in)
ROPS: 1,970 mm (77.6 in)
Wheel base 1,460 mm (57.5 in)
Weight 606 kg (1,336 lbs)
Fuel tank capacity 19.7 liters (5.2 US gal.; 4.3 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post foldable ROPS or Cab (optional).
Engine
Engine model Yanmar 3TNV76
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,116 cm2, (68.1 cu·in)
Bore and stroke 76.0 mm X 82.0 mm (2.99 in X 3.23 in)
Horsepower 24.9 PS (18.3 kW; 24.5 HP)
Starter Electric
Oil capacity: 3.2 L (3.4 US. qt, 2.8 Imp. qt.)
Coolant capacity: 2.8 L (3 US. qt, 2.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical rear
Transmission model
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 16.1 kmh (10 mph) Reverse: 9.7 (6 mph)
Transmission oil capacity 11.3 L (3 US. gal, 2.5 Imp. gal.)
Tires
Front tires Lawn/turf: 18×8.5-8
Rear tires Lawn/turf: 26×12-12
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
Hydraulic system
Hydraulic type
Pump flow 4.8 gpm (18.2 lpm)
