John Deere X948

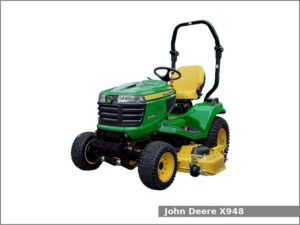

John Deere X948The John Deere X948 is a 4WD lawn and garden tractor from the X900 series. This tractor has been manufactured by John Deere in Horicon, Wisconsin, USA since 2018. The John Deere X948 is equipped with a 0.9 L (55.2 cu·in) three-cylinder diesel engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere X948 garden tractor used the Yanmar 3TNM72 engine. It is a 0.9 L, 904 cm2, (55.2 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 74.0 mm (2.91 in) of the piston stroke. The compression ratio rating is 23.4:1. This engine produced 24.9 PS (18.3 kW; 24.5 HP) of output power.

The JD X948 is equipped with power steering, wet disc brakes, open operator station with two-post ROPS, and 19.7 liters (5.2 US gal.; 4.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere X948 garden tractor:

  • Mid-mount John Deere: 48 in (1,210 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere: 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere: 60 in (1,510 mm) mower deck with 3-blades and hydraulic lift

John Deere X948 Specifications

General Specifications
Model John Deere X948
Length 2,260 mm (89 in)
Width 1,220 mm (48 in)
Height 1,980 mm (78 in)
Wheel base 1,410 mm (55.5 in)
Weight 513 kg (1,131 lbs)
Fuel tank capacity 19.7 liters (5.2 US gal.; 4.3 Imp. gal)
Battery 12V, CCA 340A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 3TNM72
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 904 cm2, (55.2 cu·in)
Bore and stroke 72.0 mm X 74.0 mm (2.83 in X 2.91 in)
Compression ratio 23.4:1
Horsepower 24.9 PS (18.3 kW; 24.5 HP)
Starter Electric
Oil capacity: 3.2 L (3.4 US. qt, 2.8 Imp. qt.)
Coolant capacity: 2.8 L (3 US. qt, 2.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 HFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Mechanical rear
Transmission model Tuff Torq K91
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 13.7 kmh (8.5 mph) Reverse: 8.1 (5 mph)
Transmission oil capacity 6.8 L (1.8 US. gal, 1.5 Imp. gal.)
Tires
Front tires Lawn/turf: 18×8.50-8
Rear tires Lawn/turf: 26×12.00-12
PTO (Power take-off shaft)
Middle PTO type Independent with electro-hydraulic clutch
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Valves 2
Pump flow 5.7 gpm (21.6 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
