John Deere X940

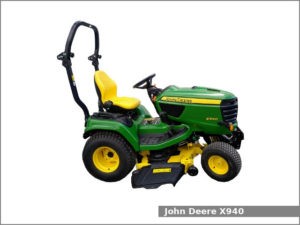

John Deere X940The John Deere X940 is a 2WD lawn and garden tractor from the X900 series. This tractor has been manufactured by John Deere in Horicon, Wisconsin, USA since 2018. The JD X940 is equipped with a 0.9 L (55.2 cu·in) three-cylinder diesel engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The John Deere X940 garden tractor used the Yanmar 3TNM72 engine. It is a 0.9 L, 904 cm2, (55.2 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 74.0 mm (2.91 in) of the piston stroke. The compression ratio rating is 23.4:1. This engine produced 24.9 PS (18.3 kW; 24.5 HP) of output power.

The John Deere X940 is equipped with power steering, wet disc brakes, open operator station with two-post ROPS, and 19.7 liters (5.2 US gal.; 4.3 Imp. gal) fuel tank.

Following attachments are available for the JD X940 garden tractor:

  • Mid-mount John Deere: 48 in (1,210 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere: 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere: 60 in (1,510 mm) mower deck with 3-blades and hydraulic lift

John Deere X940 Specifications

General Specifications
ModelJohn Deere X940
Length2,260 mm (89 in)
Width1,190 mm (46.9 in)
Height1,980 mm (78 in)
Wheel base1,380 mm (54.3 in)
Weight470 kg (1,036 lbs)
Fuel tank capacity19.7 liters (5.2 US gal.; 4.3 Imp. gal)
Battery12V, CCA 340A
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelYanmar 3TNM72
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement0.9 L, 904 cm2, (55.2 cu·in)
Bore and stroke72.0 mm X 74.0 mm (2.83 in X 2.91 in)
Compression ratio23.4:1
Horsepower24.9 PS (18.3 kW; 24.5 HP)
StarterElectric
Oil capacity:3.2 L (3.4 US. qt, 2.8 Imp. qt.)
Coolant capacity:2.8 L (3 US. qt, 2.5 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower
BrakesWet disc
Differential lockMechanical rear
Transmission modelTuff Torq K91
Transmission typeShaft-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 13.7 kmh (8.5 mph) Reverse: 8.1 (5 mph)
Transmission oil capacity6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tiresLawn/turf: 18×8.50-8
Rear tiresLawn/turf: 26×12.00-12
PTO (Power take-off shaft)
Middle PTO typeIndependent with electro-hydraulic clutch
Middle PTO speed2,000 rpm
Rear PTO typeIndependent
Rear PTO speed540 rpm
Hydraulic system
Hydraulic type
Valves2
Pump flow5.7 gpm (21.6 lpm)
