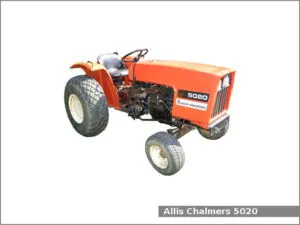

Allis Chalmers 5020

Allis Chalmers 5020The Allis Chalmers 5020 is a two-wheel or optional four-wheel compact utility tractor, manufactured by Japanese company Hinomoto on factory in Osaka, Japan for Allis Chalmers between 1977 and 1985. The Allis-Chalmers 5020 is the same tractor as the Simplicity 9523, Hinomoto E23 and Massey-Ferguson 210. The Allis Chalmers 5020 is equipped with two-cylinders liquid-cooled Toyosha S126 diesel engine with 1.3 L, 1,263 cc (77.1 cu-in) of displacement and sliding gear transmission with 8 forward and 2 reverse gears.

The Allis Chalmers 5020 utility tractor used a two-cylinder naturally-aspirated liquid-cooled diesel engine with 92.0 mm (3.62 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. Compression ratio rating is 23:1. This motor produced 23.0 HP (17.1 kW) of horsepower. Maximum observed PTO horsepower at rated engine speed is 21.0 HP (15.7 kW). The engine used Donaldson dry air cleaner.

The 5020 is equipped with sliding gear transmission with 8 forward (1.3-13.0 km/h, 0.8-8.1 mph) and 2 reverse (2.6-10.3 km/h, 1.6-6.4 mph) gears. The tractor used mechanical steering, molded asbestos single plate dry clutch, differential mechanical drum, and shoe brakes, two-pinion spiral-helical differential with 4.33:1 of ratio and gear type hydraulic pump from Kayaba.

The Allis Chalmers 5020 tractor can use the following attachments:

  • Mid-mount Allis Chalmers mower deck (cutting width: 1,520 mm (60 in.)
  • Allis Chalmers front-end loader

The Allis Chalmers 5020 used two-post rollover protection structure (ROPS) to operators and ROPS canopy as an option.

Allis Chalmers 5020 specifications

General Specifications
Model Allis Chalmers 5020
Length 2,512 mm (98.9 in.)
Width 1,219 mm (48 in.)
Height Exhaust Stack: 1,920 mm (75.6 in.)
Hood: 1,085 mm (42.7 in.)
Steering Wheel: 1,303 mm (51.3 in.)
Wheelbase 1,519 mm (59.8 in.)
Ground clearance 320-356 mm (12.6-14.0 in.)
Weight Operated: 934 kg (2,060 lb.)
Ballasted: 1,523 kg (3,358 lb.)
Fuel tank capacity 27.0 L (7.0 Gal.)
Battery 12V – 70A
Engine
Engine model Toyosha S126
Fuel Diesel
Displacement 1.3 L, 1,216 L (77.1 cu.in.)
Bore x stroke 92.0 x 95.0 mm (3.62 x 3.74 in)
Power output 21.0 HP (15.7 kW)
Torque
Starter type Electric starter Hitachi S12-61
Oil type
Oil capacity 4.0-4.7 L (4.2-5.0 qt.)
Coolant capacity 5.0 L (5.3 qt.)
Tires size
Front tires Ag: 4.00-12
Turf / Lawn: 20×8.0-10
Rear tires Ag: 9.5-24, 11.2-24
Turf: 13.6×16
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (opton)
Steering Mechanical
Transmission type Sliding gear
Gears 8 forward and 2 reverse
Ground speed Forward: up to 13.0 km/h (8.1 mph)
Reverse: up to 10.3 km/h (6.4 mph)
Transmission oil capacity 21.0 L (5.5 Gal)
PTO (Power take-off shaft)
PTO Type: Rear, transmission PTO
PTO Speed: 540 rpm
Hydraulic lift
3-point linkage: Category I
Control system:
No. of remote valves: 1
Max lifting capacity (at link end):
Hydraulic system
Type Open center
Pump flow 20.6 l/m (5.44 gpm)
Oil capacity 21.0 L (5.5 Gal)
