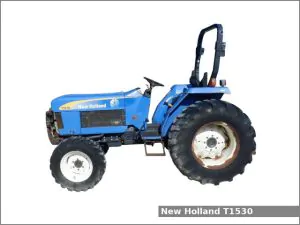

New Holland T1530

New Holland T1530The New Holland T1530 is a 4WD compact utility tractor from the T1500 series. This tractor was manufactured by New Holland from 2011 to 2013. The New Holland T1530 is equipped with a 2.2 L (135.2 cu·in) four-cylinder diesel engine and one of two transmissions: a hydrostatic transmission with infinite (3-range) forward and reverse gears or a synchronized shuttle transmission with 12 forward and 12 reverse gears.

The NH T1530 compact utility tractor used the Shibaura N844L engine. It is a 2.2 L, 2,215 cm2, (135.2 cu·in) four-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 100.0 mm (3.94 in) of the piston stroke. This engine produced 45.7 PS (33.6 kW; 45.0 HP) at 2,600 rpm of output power.

The New Holland T1530 is equipped with hydrostatic power steering, wet disc brakes, Two-post foldable ROPS and 39.0 liters (10.3 US gal.; 8.6 Imp. gal) fuel tank.

Following attachments are available for the New Holland T1530 compact utility tractor:

  • New Holland 920GH backhoe
  • New Holland 930GH backhoe

New Holland T1530 Specifications

General Specifications
Model New Holland T1530
Length 3,090 mm (121.7 in)
Width 1,730 mm (68.1 in)
Height (ROPS) 2,470 mm (97.2 in)
Wheel base 1,860 mm (73.2 in)
Weight (shipping) 1,500 kg (3,307 lbs)
Fuel tank capacity 39.0 liters (10.3 US gal.; 8.6 Imp. gal)
Battery 12V, CCA 600A
Cabin type Two-post foldable ROPS
Engine
Engine model Shibaura N844L
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,215 cm2, (135.2 cu·in)
Bore and stroke 84.0 mm X 100.0 mm (3.31 in X 3.94 in)
Horsepower 45.7 PS (33.6 kW; 45.0 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 21.9 kmh (13.6 mph) Reverse: kmh (0 mph)
Transmission model
Transmission type Synchronized shuttle
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 7.4×14
Lawn/turf: 24×8.50-14
Industrial: 25×8.50-14
Rear tires Ag: 11.2×24
Lawn/turf: 13.6×16
Industrial: 15×19.5
Three-Point Hitch
Category I
Control type
Lift capacity (at 610 mm/24 in) 1,056 kg (2,328 lbs)
PTO (Power take-off shaft)
Rear PTO type Live (gear) or independent (hydro)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 9.8 gpm (37.1 lpm)
Steering flow 5.1 gpm (19.3 lpm)
