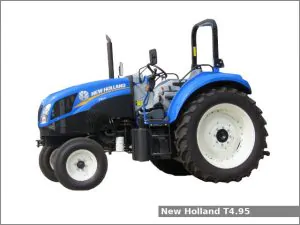

New Holland T4.95

New Holland T4.95The New Holland T4.95 is a 2WD/4WD utility tractor from the T4 series. This tractor was manufactured by New Holland from 2013 to 2014. The New Holland T4.95 is equipped with a 3.4 L (207.0 cu·in) four-cylinder diesel engine and one of three transmissions: a mechanical shuttle transmission with 12 forward and 12 reverse gears, a power shuttle transmission with 12 forward and 12 reverse gears or a full power shift transmission with 24 forward and 24 reverse gears.

The NH T4.95 utility tractor used the FPT F5D engine. It is a 3.4 L, 3,392 cm2, (207.0 cu·in) four-cylinder turbocharged diesel engine with 99.0 mm (3.9 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 99.4 PS (73.1 kW; 98.0 HP) at 2,300 rpm of output power.

The New Holland T4.95 is equipped with hydrostatic power steering, wet disc brakes, two-post ROPS, available FOPS canopy or VisionView Cab (optional) and 115.0 liters (30.4 US gal.; 25.3 Imp. gal) fuel tank.

New Holland T4.95 Specifications

General Specifications
ModelNew Holland T4.95
Length 2WD: 4,010 mm (157.9 in)
4WD: 4,080 mm (160.6 in)
Width1,920 mm (75.6 in)
Height ROPS: 2,700 mm (106.3 in)
Cab: 2,590 mm (102 in)
Wheel base 2WD: 2,290 mm (90.2 in)
4WD: 2,230 mm (87.8 in)
Ground clearance480 mm (18.9 in)
Weight 2WD ROPS: 3,070 kg (6,766 lbs)
2WD Cab: 3,290 kg (7,251 lbs)
4WD ROPS: 3,380 kg (7,451 lbs)
4WD Cab: 3,600 kg (7,936 lbs)
Fuel tank capacity115.0 liters (30.4 US gal.; 25.3 Imp. gal)
Cabin typeTwo-post ROPS, available FOPS canopy or VisionView Cab (optional)
Engine modelFPT F5D
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement3.4 L, 3,392 cm2, (207.0 cu·in)
Bore and stroke99.0 mm X 110.0 mm (3.9 in X 4.33 in)
Horsepower99.4 PS (73.1 kW; 98 HP) at 2,300 rpm
Torque407 N·m (41.5 kg·m, 300 ft·lb) at 1,500 rpm
Oil capacity:9.5 L (10 US. qt, 8.4 Imp. qt.)
Coolant capacity:16.0 L (16.9 US. qt, 14.1 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesWet disc
Transmission model
Transmission typeMechanical shuttle
Gears12 forward and 12 reverse
Transmission model
Transmission typePower shuttle
Gears12 forward and 12 reverse
Transmission modelDual Command
Transmission typeFull power shift
Gears24 forward and 24 reverse
Front tires Ag: 10.0×16 (2WD), 12.4×24 (4WD)
Rear tires Ag: 18.4×30 (2WD), 16.9×34 (4WD)
Three-Point Hitch
Control type
Lift capacity (at 610 mm/24 in)2,549 kg (5,621 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/540E/1000 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity
Pressure2755 psi (190.0 bar)
Valves1 to 3
Pump flow 12.5 gpm (47.3 lpm)
Optional: 16.9 gpm (64.0 lpm)
Steering flow 7.3 gpm (27.6 lpm)
Optional: 9.7 gpm (36.7 lpm)
