International Harvester 706

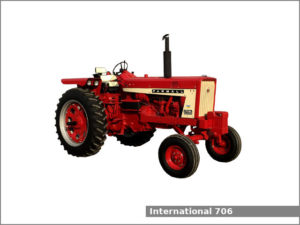

International Harvester 706The International Harvester 706 is a 2WD or 4WD standard-tread tractor manufactured by International Harvester from 1963 to 1967.

The International Harvester 706 is equipped with one of four engines: two six-cylinder gasoline/LP-gas engines or two six-cylinder diesel engine and one of two transmissions: a sliding gear transmission with 8 forward and 4 reverse gears and with dry disc clutch or transmission with 16 forward and 8 reverse gears.

This tractor could be equipped with the following engines:

  • International Harvester D282. It is a 4.6 L, 4,621 cm2, (282.0 cu·in) six-cylinder natural aspirated diesel engine with 94.0 mm (3.7 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke.
  • International Harvester D310. It is a 5.1 L, 5,080 cm2, (310.0 cu·in) six-cylinder natural aspirated diesel engine with 98.0 mm (3.78 in) of the cylinder bore and 111.0 mm (4.37 in) of the piston stroke.
  • International Harvester C263. It is a 4.3 L, 4,310 cm2, (263.0 cu·in) six-cylinder natural aspirated gasoline/LP-gas engine. The cylinder bore is 90.0 mm (3.54 in) and the piston stroke is 112.0 mm (4.41 in).
  • International Harvester C291. It is a 4.8 L, 4,768 cm2, (291.0 cu·in) six-cylinder natural aspirated gasoline/LP-gas engine. The cylinder bore is 95.0 mm (3.54 in) and the piston stroke is 112.0 mm (4.41 in).

The IH 706 is equipped with hydrostatic power steering, hydraulic disc brakes, open operator station or cab (optional), and 124.9 liters (33 US gal.; 27.5 Imp. gal) fuel tank.

International Harvester 706 Specifications

General Specifications
Model International Harvester 706
Length 2WD: 3,780 mm (148.8 in)
4WD: 3,960 mm (155.9 in)
Width 2,610 mm (102.8 in)
Height (steering wheel) 2WD: 2,030 mm (79.9 in)
4WD: 2,040 mm (80.3 in)
Wheel base 2WD: 2,220 mm (87.4 in)
4WD: 2,200 mm (86.6 in)
Ground clearance (front axle) 2WD: 430 mm (16.9 in)
4WD: 330 mm (13 in)
Weight (shipping) Gas: 3,675 kg (8,102 lbs)
Diesel: 3,790 kg (8,356 lbs)
Fuel tank capacity 124.9 liters (33 US gal.; 27.5 Imp. gal)
Battery Gas: 12V; Diesel: two 6V
Cabin type Open operator station or Cab (optional)
Engine
Engine model International Harvester D282
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 4.6 L, 4,621 cm2, (282.0 cu·in)
Bore and stroke 94.0 mm X 112.0 mm (3.7 in X 4.41 in)
Horsepower
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 20.3 L (21.5 US. qt, 17.9 Imp. qt.)
Engine
Engine model International Harvester D310
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.1 L, 5,080 cm2, (310.0 cu·in)
Bore and stroke 98.0 mm X 110.0 mm (3.78 in X 4.37 in)
Horsepower
Starter Electric
Engine
Engine model International Harvester C263
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Gasoline/LP-gas
Displacement 4.3 L, 4,310 cm2, (263.0 cu·in)
Bore and stroke 90.0 mm X 112.0 mm (3.54 in X 4.41 in)
Horsepower
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: Gasoline: 19.4 L (20.5 US. qt, 17.1 Imp. qt.)
LP-gas: 19.9 L (21.0 US.qts, 17.5 Imp. qts)
Engine
Engine model International Harvester C291
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Gasoline/LP-gas
Displacement 4.8 L, 4,768 cm2, (291.0 cu·in)
Bore and stroke 95.0 mm X 112.0 mm (3.75 in X 4.41 in)
Horsepower
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 FWA 4WD (optional)
Steering type Hydrostatic power
Brakes Hydraulic disc
Transmission model
Transmission type Sliding gear with dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 28.6 kmh (17.8 mph) Reverse: 14.1 (8.8 mph)
Transmission oil capacity 64.4 L (17 US. gal, 14.2 Imp. gal.)
Transmission model Torque Amplifier
Transmission type
Gears 16 forward and 8 reverse
Speed Forward: 28.6 kmh (17.8 mph) Reverse: 14.1 (8.8 mph)
Transmission oil capacity 64.4 L (17 US. gal, 14.2 Imp. gal.)
Tires
Front tires Ag: 7.50-18 (2WD), 11.2-24 (4WD)
Rear tires Ag: 18.4-30
Three-Point Hitch
Category II/I
Control type Torsion bar (optional)
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 64.4 L (17 US. gal, 14.2 Imp. gal.)
Valves 1 or 2
Pump flow 12.0 gpm (45.4 lpm)
17.0 gpm (64.3 lpm) (optional)
Steering flow 9.0 gpm (34.1 lpm)
Total flow 24.0 gpm (90.8 lpm)
