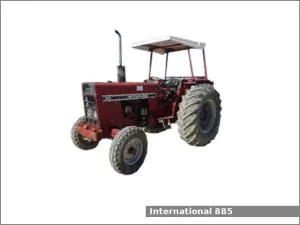

International Harvester 885 utility tractor: review and specs

The International Harvester 885 is a 2WD/4WD utility tractor from the 85 series. This tractor was manufactured by International Harvester in Doncaster, England from 1981 to 1985. The International 885 is equipped with a 4.4 L (268.0 cu·in) four-cylinder diesel engine and one of two transmissions: a synchromesh transmission with 8 forward and 4 reverse gears or a two-speed power shift transmission with 16 forward and 8 reverse gears.

The International 885 utility tractor used the International Harvester D268 engine. It is a 4.4 L, 4,392 cm², (268.0 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 140.0 mm (5.51 in) of the piston stroke. This engine produced 86.2 PS (63.4 kW; 85.0 HP) at 2,400 rpm of output power.

The International 885 is equipped with power steering, hydraulic wet disc brakes, Cab (standard), Economy and Deluxe cabs available. and 112.0 liters (29.6 US gal.; 24.6 Imp. gal) fuel tank.

International Harvester 885 Specifications

General Specifications
Model	International Harvester 885
Length	3,740 mm (147.2 in)
Width	–
Height	2,640 mm (103.9 in)
Wheel base	2,160 mm (85 in)
Weight	2WD: 3,340 kg (7,363 lbs) 4WD: 3,560 kg (7,848 lbs)
Fuel tank capacity	112.0 liters (29.6 US gal.; 24.6 Imp. gal)
Battery	–
Cabin type	Cab (standard), Economy and Deluxe cabs available.
Engine
Engine model	International Harvester D268
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	4
Fuel type	Diesel
Displacement	4.4 L, 4,392 cm², (268.0 cu·in)
Bore and stroke	100.0 mm X 140.0 mm (3.94 in X 5.51 in)
Horsepower	86.2 PS (63.4 kW; 85.0 HP) at 2,400 rpm
Torque	287.5 N·m (29.3 kg·m, 211.9 ft·lb) at 1,600 rpm
Starter	Electric

Transmission and chassis
Chassis	4×2 2WD or 4×4 MFWD 4WD
Steering type	Power
Brakes	Hydraulic wet disc
Differential lock	Rear (standard)
Transmission model	–
Transmission type	Synchromesh
Gears	8 forward and 4 reverse
Transmission model	Torque Amplifier
Transmission type	Two-speed power shift
Gears	16 forward and 8 reverse
Tires
Front tires	Ag: 10.00-16 (2WD), 12.4-24 (4WD)
Rear tires	Ag: 16.9-34

Three-Point Hitch
Category	II
Control type	Position and draft control
Lift capacity	2,380 kg (5,250 lbs)
PTO (Power take-off shaft)
Rear PTO type	Independent with hydraulic wet disc clutch
Rear PTO speed	540/1000 rpm
Hydraulic system
Hydraulic type	–
Pump flow	12.4 gpm (46.9 lpm)
