Ford 4610

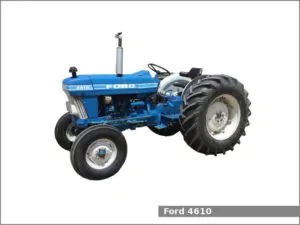

Ford 4610The Ford 4610 is a 2WD or 4WD utility tractor manufactured by Ford from 1981 to 1989.

The Ford 4610 is equipped with one of two engines: a 3.3 L (201.0 cu·in) three-cylinder diesel engine or a 3.3 L (201.0 cu·in) three-cylinder gasoline engine and one of two transmissions: a transmission with 8 forward and 2 reverse gears or a synchromesh transmission with 8 forward and 4 reverse gears.

The Ford 4610 is equipped with power assist steering, differential wet disc brakes, two-post fixed ROPS or Cab (optional), and 60.6 liters (16 US gal.; 13.3 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Ford diesel engine. It is a 3.3 L, 3,294 cm2, (201.0 cu·in) three-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 15.3:1. This engine produced 63.9 PS (47.0 kW; 63.0 HP) at 2,200 rpm of output power and 228.5 N·m (23.3 kg·m, 168.4 ft·lb) at 1,400 rpm of torque.
  • Ford gas engine. It is a 3.3 L, 3,294 cm2, (201.0 cu·in) three-cylinder natural aspirated gasoline engine. The cylinder bore is 112.0 mm (4.41 in) and the piston stroke is 112.0 mm (4.41 in). The compression ratio rating is 7.75:1. This engine produced 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm of output power and 228.5 N·m (23.3 kg·m, 168.4 ft·lb) at 1,100 rpm of torque.

Ford 4610 Specifications

General Specifications
Model Ford 4610
Length 3,520 mm (138.6 in)
Width 1,710 mm (67.3 in)
Height (ROPS) 2,400 mm (94.5 in)
Wheel base 2WD: 2,140 mm (84.3 in)
4WD: 2,130 mm (84.1 in)
Weight (ballasted) 3,740 kg (8,250 lbs)
Fuel tank capacity 60.6 liters (16 US gal.; 13.3 Imp. gal)
Battery 12V, 77Ah (gas), 128Ah (diesel)
Cabin type Two-post fixed ROPS or Cab (optional)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 3.3 L, 3,294 cm2, (201.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 15.3:1
Horsepower 63.9 PS (47.0 kW; 63.0 HP) at 2,200 rpm
Torque 228.5 N·m (23.3 kg·m, 168.4 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 6.6 L (7 US. qt, 5.8 Imp. qt.)
Coolant capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Gasoline
Displacement 3.3 L, 3,294 cm2, (201.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 7.75:1
Horsepower 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm
Torque 228.5 N·m (23.3 kg·m, 168.4 ft·lb) at 1,100 rpm
Starter Electric
Oil capacity: 6.6 L (7 US. qt, 5.8 Imp. qt.)
Coolant capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power assist
Brakes Differential wet disc
Differential lock Mechanical rear
Transmission model Dual Range
Transmission type
Gears 8 forward and 2 reverse
Speed Forward: 26.9 kmh (16.7 mph) Reverse: 13.0 (8.1 mph)
Transmission oil capacity 12.0 L (3.2 US. gal, 2.6 Imp. gal.)
Transmission model
Transmission type Synchromesh
Gears 8 forward and 4 reverse
Speed Forward: 30.2 kmh (18.8 mph) Reverse: 11.0 (6.8 mph)
Transmission oil capacity 9.4 L (2.5 US. gal, 2.1 Imp. gal.)
Tires
Front tires Ag: 7.50-16 (2WD), 8.3-24 (4WD)
Rear tires Ag: 14.9-28
Three-Point Hitch
Caterogy II/I
Control type Position and top-link draft control
Lift capacity (at 610 mm / 24 in) 1,395 kg (3,076 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 45.8 L (12.1 US gal, 10.1 Imp. gal)
Valves 1
Pump flow 8.5 gpm (32.2 lpm)
14.1 gpm (53.4 lpm)
Steering flow 3.6 gpm (13.6 lpm)
