John Deere 350

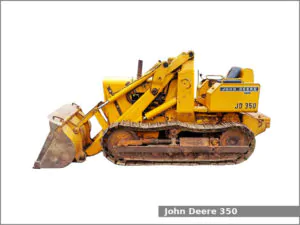

John Deere 350The John Deere 350 is a industrial crawler manufactured by John Deere from 1965 to 1970.

The John Deere 350 is equipped with one of two engines: a 2.5 L (152.0 cu·in) three-cylinder diesel engine or a 2.2 L (135.0 cu·in) three-cylinder gasoline engine and one of two transmissions: a gear type transmission with 4 forward and 1 reverse gear or a shuttle transmission with 4 forward and 4 reverse gears.

The tractor could be equipped with the following engines:

  • John Deere diesel. It is a 2.5 L, 2,491 cm2, (152.0 cu·in) three-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.7:1. This engine produced 46.6 PS (34.3 kW; 46.0 HP) at 2,500 rpm of output power and 149.2 N·m (15.2 kg·m, 110 ft·lb) at 1,300 rpm of torque.
  • John Deere gasoline. It is a 2.2 L, 2,212 cm2, (135.0 cu·in) three-cylinder natural aspirated gasoline engine. The cylinder bore is 98.0 mm (3.86 in) and the piston stroke is 98.0 mm (3.86 in). The compression ratio rating is 7.7:1. This engine produced 42.6 PS (31.3 kW; 42.0 HP) at 2.500 rpm of output power.

The JD 350 dozer is equipped with a clutch-brake steering system, contracting band brakes, open operator station, and 83.3 liters (22 US gal.; 18.3 Imp. gal) fuel tank.

Following attachments are available for the John Deere 350 industrial crawler:

  • Front-mount John Deere 6300 72: 1,820 mm (72 inch) blade
  • Front-mount John Deere 6300 90: 2,280 mm (90 inch) blade
  • Front-mount John Deere 6305: 2,030 mm (80 inch) blade
  • Front-mount John Deere 6310: 2,360 mm (93 inch) blade
  • Front-mount John Deere 93A backhoe
  • Front-mount John Deere 95A backhoe

John Deere 350 Specifications

General Specifications
Model John Deere 350
Length 4-roller: 2,460 mm (96.9 in)
5-roller: 2,510 mm (99.1 in)
Width 1,520 mm (59.8 in)
Height (exhaust) 1,930 mm (76 in)
Wheel base
Ground clearance 330 mm (13 in)
Weight (shiping) Gas: 3,550 kg (7,825 lbs)
Diesel: 3,580 kg (7,895 lbs)
Fuel tank capacity 83.3 liters (22 US gal.; 18.3 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.5 L, 2,491 cm2, (152.0 cu·in)
Bore and stroke 98.0 mm X 110.0 mm (3.86 in X 4.33 in)
Compression ratio 16.7:1
Horsepower 46.6 PS (34.3 kW; 46 HP) at 2,500 rpm
Torque 149.2 N·m (15.2 kg·m, 110 ft·lb) at 1,300 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Gasoline
Displacement 2.2 L, 2,212 cm2, (135.0 cu·in)
Bore and stroke 98.0 mm X 98.0 mm (3.86 in X 3.86 in)
Compression ratio 7.7:1
Horsepower 42.6 PS (31.3 kW; 42 HP) at 2.500 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis Crawler
Steering type Clutch-brake system
Brakes Contracting band
Transmission model
Transmission type Gear type
Gears 4 forward and 1 reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 3.1 (1.9 mph)
Transmission oil capacity 8.5 L (2.2 US. gal, 1.9 Imp. gal.)
Transmission model
Transmission type Shuttle
Gears 4 forward and 4 reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 10.5 (6.5 mph)
Tracks
Size 12-inch tracks, 10-inch tracks, 14-inch tracks
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Pump flow 15.0 gpm (56.8 lpm)
25.0 gpm (94.6 lpm)
