Ford 9N

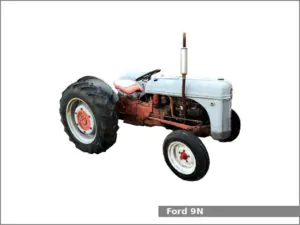

Ford 9NThe Ford 9N is a 2WD utility tractor from the N series. This tractor was manufactured by the Ford Motor Company in Dearborn, Michigan, USA from 1936 to 1942. The Ford 9N is equipped with a 2.0 L four-cylinder gasoline engine and sliding gear transmission with 3 forward and 1 reverse gear.

The Ford 9N utility tractor used the Ford engine. It is a 2.0 L, 1,961 cm2, (120.0 cu·in) side-valve, four-cylinder, natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at rpm of maximum output power. The distillate engine with the compression ratio rating of 4.75:1 was used on the Ford 9NAN variation, power is about 10% lower than on the 9N.

The Ford 9N is equipped with manual steering, differential mechanical shoe brakes, open operator station and 38.0 liters (10 US gal.; 8.4 Imp. gal) fuel tank.

Ford 9N Specifications

General Specifications
ModelFord 9N
Length2,920 mm (115 in)
Width1,620 mm (63.8 in)
Height1,320 mm (52 in)
Wheel base1,770 mm (69.7 in)
Weight1,315 kg (2,900 lbs)
Fuel tank capacity38.0 liters (10 US gal.; 8.4 Imp. gal)
Battery6V 85Ah
Cabin typeOpen operator station
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeGasoline
Displacement2.0 L, 1,961 cm2, (120.0 cu·in)
Bore and stroke81.0 mm X 95.0 mm (3.19 in X 3.74 in)
Compression ratio6.0:1
Horsepower23.4 PS (17.2 kW; 23.1 HP)
Torque113.9 N·m (11.6 kg·m, 83.9 ft·lb)
StarterElectric
Oil capacity:5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Coolant capacity:11.4 L (12.05 US. qt, 10.03 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesDifferential mechanical shoe
Transmission model
Transmission typeSliding gear
Gears3 forward and 1 reverse
Speed Forward: 18.9 kmh (11.7 mph) Reverse: 7.0 (4.4 mph)
Transmission oil capacity18.9 L (5 US. gal, 4.2 Imp. gal.)
Tires
Front tiresAg: 4.00-19
Rear tiresAg: 8.00-32
Three-Point Hitch
CaterogyI
Control type
Lift capacity362 kg (798 lbs)
PTO (Power take-off shaft)
Rear PTO typeTransmission
Rear PTO spped545 rpm
