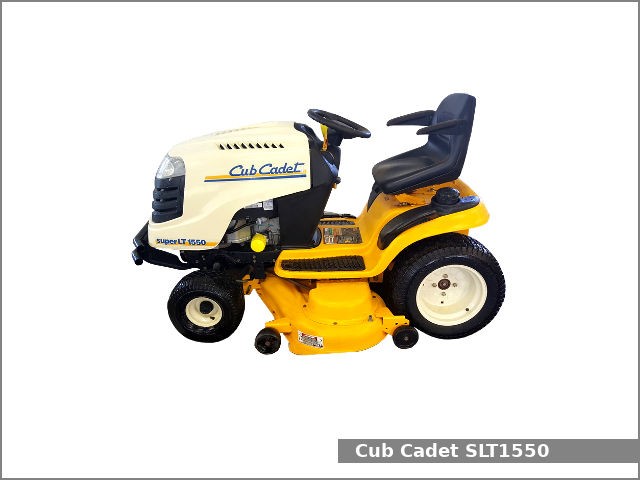

Cub Cadet SLT1550

Cub Cadet SLT1550The Cub Cadet SLT1550 is a 2WD lawn tractor from the 1500 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2006 to 2008. The Cub Cadet SLT1550 is equipped with a 0.7 L (44.2 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet SLT 1550 lawn tractor used the Kohler Courage SV730 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,375 rpm of output power and 63.0 N·m (6.4 kg·m, 46.4 ft·lb) at 2,000 rpm of torque.

The Cub Cadet SLT1550 is equipped with manual steering, dry disc brakes, open operator station, and 13.2 liters (3.5 US gal.; 2.9 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet Super LT 1550 lawn tractor:

  • Mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades with manual lift
  • Front-mount Cub Cadet 190-674 46 in (1,160 mm) blade with manual lift
  • Front-mount Cub Cadet 190-032 42 in (1,060 mm) dual-stage snow blower with manual lift

Cub Cadet SLT1550 Specifications

General Specifications
Model Cub Cadet SLT1550
Length 1,720 mm (67.7 in)
Width 1,370 mm (53.9 in)
Height 1,090 mm (42.9 in)
Wheel base 1,160 mm (45.7 in)
Ground clearance 110 mm (4.3 in)
Weight 250 kg (551 lbs)
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)
Battery 12V, CCA 235A
Cabin type Open operator station
Engine
Engine model Kohler Courage SV730
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 3,375 rpm
Torque 63.0 N·m (6.4 kg·m, 46.4 ft·lb) at 2,000 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model Hydro-Gear 0510
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 (2.3 mph)
Transmission oil capacity 2.3 L (0.6 US. gal, 0.5 Imp. gal.)
Tires
Front tires Lawn/turf: 15x6x6
Rear tires Lawn/turf: 22×9.5×12
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
