Allis Chalmers D14

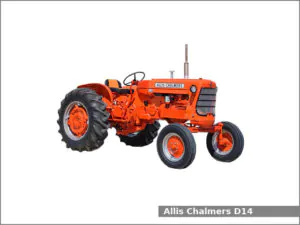

Allis Chalmers D14The Allis Chalmers D14 is a 2WD row-crop tractor from the D series. This tractor was manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1957 to 1960. The Allis Chalmers D14 is equipped with a 2.4 L (149.0 cu·in) four-cylinder gasoline / LP-gas engine and one of two transmissions: a sliding gear transmission with 4 forward and 1 reverse gear or the Power-Director transmission with 8 forward and 2 reverse gears.

The Allis Chalmers D14 row-crop tractor used the Allis-Chalmers engine. It is a 2.4 L, 2,441 cm2, (149.0 cu·in) four-cylinder natural aspirated gasoline / LP-gas engine with 89.0 mm (3.5 in) of the cylinder bore and 98.0 mm (3.86 in) of the piston stroke. The compression ratio rating is 7.5:1 for the gasoline version or 8.5L1 for the LP-gas version. This engine produced 37.5 PS (27.6 kW; 37.0 HP) at 1,650 rpm of output power.

The Allis Chalmers D14 is equipped with manual steering, mechanical expanding shoe brakes, open operator station, and 53.0 liters (14.0 US gal.; 11.7 Imp. gal) fuel tank for gasoline fuel or 84.4 liters (22.3 US gal, 18.6 Imp. gal) for LP-gas fuel.

Allis Chalmers D14 Specifications

General Specifications
Model Allis Chalmers D14
Length 3,270 mm (128.7 in)
Width
Height 2,020 mm (79.5 in)
Wheel base 2,170 mm (85.4 in)
Ground clearance 630 mm (24.8 in)
Weight 1,590 kg (3,505 lbs)
Fuel tank capacity 53.0 liters (14 US gal.; 11.7 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model Allis-Chalmers
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline / LP-gas
Displacement 2.4 L, 2,441 cm2, (149.0 cu·in)
Bore and stroke 89.0 mm X 98.0 mm (3.5 in X 3.86 in)
Compression ratio Gasoline: 7.5:1
LP-gas: 8.5:1
Horsepower 37.5 PS (27.6 kW; 37.0 HP) at 1,650 rpm
Starter Electric
Coolant capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical expanding shoe
Transmission model
Transmission type Sliding gear
Gears 4 forward and 1 reverse
Speed Forward: 19.3 kmh (12 mph) Reverse: 6.0 (3.7 mph)
Transmission model Power-Director
Transmission type
Gears 8 forward and 2 reverse
Speed Forward: 19.3 kmh (12 mph) Reverse: 6.0 (3.7 mph)
Tires
Front tires Ag: 5.50-16
Rear tires Ag: 12.00-26
Rear Hitch
Type Allis Snap Coupler
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
