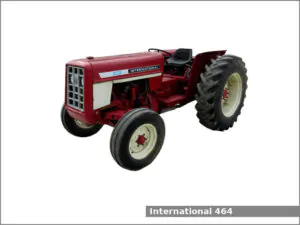

The International Harvester 464 is a 2WD utility tractor manufactured by International Harvester from 1973 to 1978.
The International Harvester 464 is equipped with one of two engines: a 2.9 L (175.0 cu·in) four-cylinder gasoline engine or a 2.9 L (179.0 cu·in) four-cylinder diesel engine and a synchromesh transmission with 8 forward and 4 reverse gears and dry disc clutch.
The tractor could be equipped with the following engines:
- International Harvester C-175. It is a 2.9 L, 2,868 cm2, (175.0 cu·in) four-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 7.2:1. This engine produced 45.7 PS (33.6 kW; 45.0 HP) at 2,400 rpm of output power.
- Interntional Harvester D-179. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 98.0 mm (3.86 in) and the piston stroke is 129.0 mm (5.08 in). The compression ratio rating is 16.0:1. This engine produced 45.7 PS (33.6 kW; 45.0 HP) at 2,400 rpm of output power.
The IH 464 is equipped with hydrostatic power steering, independent hydraulic wet disc brakes, an open operator station or ROPS (optional), and 70.0 liters (18.5 US gal.; 15.4 Imp. gal) fuel tank.
International Harvester 464 Specifications
| General Specifications | |
| Model | International Harvester 464 |
| Length | 3,370 mm (132.7 in) |
| Width | 1,670 mm (65.7 in) |
| Height (steering wheel) | 1,390 mm (54.7 in) |
| Wheel base | 250 mm (9.8 in) |
| Ground clearance | 1,910 mm (75.2 in) |
| Weight (shipping) |
Gas: 1,860 kg (4,101 lbs) Diesel: 1,925 kg (4,244 lbs) |
| Fuel tank capacity | 70.0 liters (18.5 US gal.; 15.4 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station or ROPS (optional) |
| Engine | |
| Engine model | International Harvester C-175 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 2.9 L, 2,868 cm2, (175.0 cu·in) |
| Bore and stroke | 90.0 mm X 112.0 mm (3.54 in X 4.41 in) |
| Compression ratio | 7.2:1 |
| Horsepower | 45.7 PS (33.6 kW; 45.0 HP) at 2,400 rpm |
| Starter | Electric |
| Oil capacity: | 6.6 L (7 US. qt, 5.8 Imp. qt.) |
| Coolant capacity: | 12.3 L (13 US. qt, 10.8 Imp. qt.) |
| Engine | |
| Engine model | Interntional Harvester D-179 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 2.9 L, 2,933 cm2, (179.0 cu·in) |
| Bore and stroke | 98.0 mm X 129.0 mm (3.86 in X 5.08 in) |
| Compression ratio | 16.0:1 |
| Horsepower | 45.7 PS (33.6 kW; 45.0 HP) at 2,400 rpm |
| Starter | Electric |
| Oil capacity: | 7.6 L (8 US. qt, 6.7 Imp. qt.) |
| Coolant capacity: | 11.4 L (12 US. qt, 10 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Hydrostatic power |
| Brakes | Independent hydraulic wet disc |
| Transmission model | – |
| Transmission type | Synchromesh with dry disc clutch |
| Gears | 8 forward and 4 reverse |
| Speed | Forward: 35.2 kmh (21.9 mph) Reverse: 11.9 (7.4 mph) |
| Transmission oil capacity | 34.1 L (9 US. gal, 7.5 Imp. gal.) |
| Tires | |
| Front tires | Ag: 6.00-16 |
| Rear tires | Ag: 13.6-28 |
| Three-Point Hitch | |
| Category | I |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540 rpm |
