Kubota BX1500

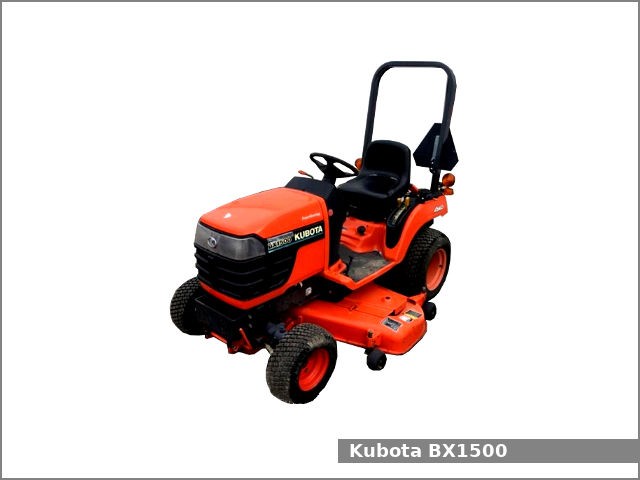

Kubota BX1500The Kubota BX1500 is a 4WD sub-compact utility tractor from the BX series. This tractor was manufactured by Kubota from 2003 to 2005. The Kubota BX1500 is equipped with a 0.6 L two-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota BX1500 sub-compact utility tractor used the Kubota Z602 engine. It is a 0.6 L, 599 cm2, (36.6 cu·in) two-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 15.2 PS (11.2 kW; 15.0 HP) of maximum output power.

The Kubota BX1500 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Following attachments are available for the Kubota BX1500 sub-compact utility tractor:

  • Mid-mount Kubota RCK48-15BX 48 in (1,210 mm) mower deck with 3-blades
  • Mid-mount Kubota RCK54-15BX 54 in (1,370 mm) mower deck with 3-blades
  • Front-mount Kubota TG2754 54 in (1,370 mm) 3-blade
  • Front-mount Kubota BX2750A 50 in (1,270 mm) snowblower
  • Kubota LA181 loader

Kubota BX1500 Specifications

General Specifications
Model Kubota BX1500
Length 1,900 mm (74.8 in)
Width 1,140 mm (44.9 in)
Height 1,760 mm (69.3 in)
Wheel base 1,340 mm (52.8 in)
Weight 550 kg (1,212 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota Z602
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.6 L, 599 cm2, (36.6 cu·in)
Bore and stroke 72.0 mm X 73.6 mm (2.83 in X 2.9 in)
Compression ratio 24.0:1
Horsepower 15.2 PS (11.2 kW; 15.0 HP)
Starter Electric
Oil type Above CD grade
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model HST
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Tires
Front tires Ag/Lawn/turf: 16×7.5-8
Rear tires Ag/Lawn/turf: 24×12-12
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 550 kg (1,213 lbs)
PTO (Power take-off shaft)
Front PTO type Optional
Front PTO spped 2,500 rpm
Middle PTO type Independent
Middle PTO spped 2,500 rpm
Rear PTO type Independent with hydraulic clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1
Total flow 5.5 gpm (20.8 lpm)
