Massey Ferguson 1736

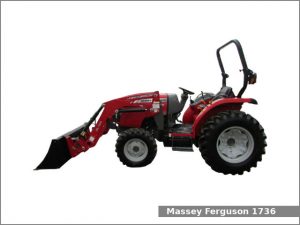

Massey Ferguson 1736The Massey Ferguson 1736 is a 4WD compact utility tractor from the 1700 series. This tractor was manufactured by Massey Ferguson from 2013 to 2018. The MF 1736 is equipped with a 1.7 L (101.0 cu·in) three-cylinder diesel engine and one of two transmissions: a power shuttle transmission with 12 forward and 12 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The MF 1736 compact utility tractor used the Mitsubishi K38 engine. It is a 1.7 L, 1,655 cm2, (101.0 cu·in) three-cylinder turbocharged intercooled diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. This engine produced 36.7 PS (27.0 kW; 36.2 HP) at 2,500 rpm of output power.

The Massey Ferguson 1736 is equipped with power steering, wet disc brakes, a two-post foldable ROPS or Cab (optional) and 40.1 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank.

Massey Ferguson 1736 Specifications

General Specifications
Model Massey Ferguson 1736
Length 3,090 mm (121.7 in)
Width 1,630 mm (64.2 in)
Height (cab) 2,310 mm (90.9 in)
Wheel base 1,770 mm (69.7 in)
Weight ROPS: 1,525 kg (3,362 lbs)
Cab: 1,725 kg (3,803 lbs)
Fuel tank capacity 40.1 liters (10.6 US gal.; 8.8 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS or Cab (optional)
Engine
Engine model Mitsubishi K38
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.7 L, 1,655 cm2, (101.0 cu·in)
Bore and stroke 86.0 mm X 95.0 mm (3.39 in X 3.74 in)
Horsepower 36.7 PS (27.0 kW; 36.2 HP) at 2,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Bull gear
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Tires
Front tires Ag: 8-16
Lawn/turf: 27×8.50-15
Rear tires Ag: 12.4-24
Lawn/turf: 41×14.00-20
Three-Point Hitch
Category I
Control type Position control and draft control (optional)
Lift capacity (at ends) 1,150 kg (2,535 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center gear pump
Valves 1 to 3
Pump flow 11.6 gpm (43.9 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
