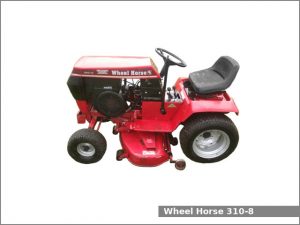

The Wheel Horse 310-8 is a 2WD garden tractor from the 300 series. This tractor was manufactured by Wheel Horse in South Bend, Indiana, USA from 1985 to 1993. The Wheel Horse 310-8 is equipped with one of two engines: the Kohler K241S or the Kohler M10S engine and a belt-driven gear transmission with 6 forward and 2 reverse gears.
The tractor could be equipped with the following engines:
- Kohler K241S. It is a 0.4 L, 390 cm2, (23.8 cu·in) single-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of output power.
- Kohler M10S. It is a 0.4 L, 390 cm2, (23.8 cu·in) single-cylinder natural aspirated gasoline engine. The cylinder bore is 83.0 mm (3.27 in) and the piston stroke is 73.0 mm (2.87 in). The compression ratio rating is 6.2:1. This engine produced 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of output power.
The WH 310-8 is equipped with manual steering, open operator station and 8.5 liters (2.2 US gal.; 1.9 Imp. gal) fuel tank.
Following attachments are available for the Wheel Horse 310-8 garden tractor:
- Mid-mount Wheel Horse 910 mm (36 in) mower deck with manual lift
- Mid-mount Wheel Horse 930 mm (37 in) mower deck with manual lift
- Mid-mount Wheel Horse 1,060 mm (42 in) mower deck with 3-blade and manual lift
- Front-mount Wheel Horse 1,210 mm (48 in) blade
- Front-mount Wheel Horse 1,060 mm (42 in) snow blower
- Front-mount Wheel Horse 1,110 mm (44 in) two-stage snow blower
Wheel Horse 310-8 Specifications
| General Specifications | |
| Model | Wheel Horse 310-8 |
| Length | 1,650 mm (65 in) |
| Width | 920 mm (36.2 in) |
| Height | 1,020 mm (40.2 in) |
| Wheel base | 1,150 mm (45.3 in) |
| Weight | 239 kg (527 lbs) |
| Fuel tank capacity | 8.5 liters (2.2 US gal.; 1.9 Imp. gal) |
| Battery | 12V, CCA 160A, 24Ah |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler K241S |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.4 L, 390 cm2, (23.8 cu·in) |
| Bore and stroke | 83.0 mm X 73.0 mm (3.27 in X 2.87 in) |
| Horsepower | 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm |
| Starter | Electric |
| Engine | |
| Engine model | Kohler M10S |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.4 L, 390 cm2, (23.8 cu·in) |
| Bore and stroke | 83.0 mm X 73.0 mm (3.27 in X 2.87 in) |
| Compression ratio | 6.2:1 |
| Horsepower | 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | – |
| Transmission model | Wheel Horse |
| Transmission type | Belt-driven gear |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 8.8 kmh (5.5 mph) Reverse: 4.2 kmh (2.6 mph) |
| Transmission oil capacity | 1.9 L (2.00 US.qts, 1.67 Imp. qts) |
| Tires | |
| Front tires | Lawn/turf: 15×6.00-6 |
| Rear tires | Lawn/turf: 23×8.50-12 |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with mechanical clutch |
| Front PTO speed | – |
