Farmall H

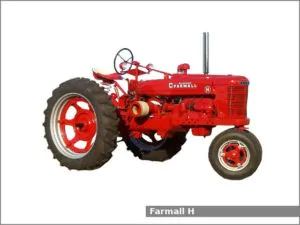

Farmall HThe Farmall H is a 2WD row-crop tractor manufactured by the Farmall (a part of International Harvester) in Rock Island, Illinois, USA from 1939 to 1953. The Farmall H is equipped with a 2.5 L four-cylinder engine and sliding gear transmission with dry disc clutch with 5 forward and 1 reverse gear.

The Farmall H tractor could be equipped with the following engines: the International Harvester C-152 gasoline engine, the International Harvester distillate engine or the International Harvester kerosene engine. All engines has the same displacement of 2.5 L, 2,492 cm2, (152.1 cu·in). The cylinder bore is 86.0 mm (3.39 in) and the piston stroke is 108.0 mm (4.25 in). Compression ratio ratings are 5.9:1 for gasoline engine, 4.75:1 for distillate and 4.5:1 for kerosene engine.

The Farmall H is equipped with manual steering, mechanical contracting band brakes, open operator station and 66.0 liters (17.4 US gal.; 14.5 Imp. gal) fuel tank.

Farmall H Specifications

General Specifications
Model Farmall H
Length 3,180 mm (125.2 in)
Width 1,910 mm (75.2 in)
Height ,1870 mm (73.6 in)
Wheel base 2,240 mm (88.2 in)
Weight 1,760 kg (3,880 lbs)
Fuel tank capacity 66.0 liters (17.4 US gal.; 14.5 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model International Harvester C-152
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.5 L, 2,492 cm2, (152.1 cu·in)
Bore and stroke 86.0 mm X 108.0 mm (3.39 in X 4.25 in)
Compression ratio 5.9:1
Horsepower
Starter Manual or electric
Oil capacity: 5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Coolant capacity: 15.6 L (16.48 US. qt, 13.73 Imp. qt.)
Spark plug gap 0.63 mm (0.025 in)
Point gap 0.33 mm (0.013 in)
Intake valve clearance/td>

0.43 mm (0.017 in)
Exhaust valve clearance/td>

0.43 mm (0.017 in)
Engine
Engine model International Harvester
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Distillate
Displacement 2.5 L, 2,492 cm2, (152.1 cu·in)
Bore and stroke 86.0 mm X 108.0 mm (3.39 in X 4.25 in)
Compression ratio 4.75:1
Horsepower
Oil capacity: 5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Coolant capacity: 15.6 L (16.48 US. qt, 13.73 Imp. qt.)
Engine
Engine model International Harvester
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Kerosene
Displacement 2.5 L, 2,492 cm2, (152.1 cu·in)
Bore and stroke 86.0 mm X 108.0 mm (3.39 in X 4.25 in)
Compression ratio 4.5:1
Horsepower
Oil capacity: 5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Coolant capacity: 15.6 L (16.48 US. qt, 13.73 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical contracting band
Transmission model
Transmission type Sliding gear with dry disc clutch
Gears 5 forward and 1 reverse
Speed Forward: 26.3 kmh (16.3 mph) Reverse: 4.4 (2.7 mph)
Transmission oil capacity 22.7 L (23.99 US. qt, 19.97 Imp. qt.)
Tires
Front tires Ag: 5.50-16, 6-16
Rear tires Ag: 6.00-36, 8-38, 9-38, 10-38 or 51×6 (steel)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 540 rpm
