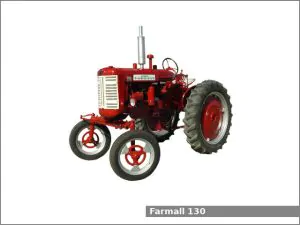

Farmall 130The Farmall 130 is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) from 1956 to 1958. The Farmall 130 is equipped with a 2.0 L (122.7 cu·in) four-cylinder gasoline engine and a sliding gear transmission with 4 forward and 1 reverse gears and dry disc clutch.

The Farmall 130 row-crop tractor used the International Harvester C-123 engine. It is a 2.0 L, 2,011 cm2, (122.7 cu·in) four-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 6.8:1.

The Farmall 130 is equipped with manual steering, differential mechanical contracting band brakes, open operator station and 41.6 liters (11 US gal.; 9.2 Imp. gal) fuel tank.

Farmall 130 Specifications

General Specifications
ModelFarmall 130
Length2,710 mm (106.7 in)
Width1,420 mm (55.9 in)
Height (steering wheel)1,650 mm (65 in)
Wheel base1,800 mm (70.9 in)
Ground clearance550 mm (21.7 in)
High crop: 680 mm (26.8 in)
Weight (operating)1,270 kg (2,800 lbs)
Fuel tank capacity41.6 liters (11 US gal.; 9.2 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelInternational Harvester C-123
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeGasoline
Displacement2.0 L, 2,011 cm2, (122.7 cu·in)
Bore and stroke79.0 mm X 102.0 mm (3.11 in X 4.02 in)
Compression ratio6.8:1
Horsepower
StarterElectric
Oil capacity:4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity:14.2 L (15 US. qt, 12.5 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesDifferential mechanical contracting band
Transmission model
Transmission typeSliding gear with dry disc clutch
Gears4 forward and 1 reverse
Speed Forward: 16.1 kmh (10.0 mph) Reverse: 4.7 kmh (2.9 mph)
Tires
Front tires Ag: 5.00×15
Rear tires Ag: 9.00×24
Three-Point Hitch
CategoryIH Fast-Hitch (1-arm)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed540 rpm
