Farmall 230

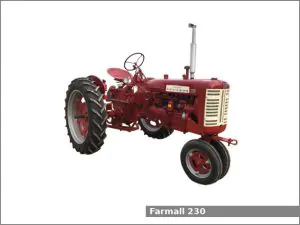

Farmall 230The Farmall 230 is a 2WD row-crop tractor manufactured by Farmall (a part of International Harvester) in Louisville, Kentucky, USA from 1956 to 1958. The Farmall 230 is equipped with a 2.0 L (122.7 cu·in) four-cylinder gasoline engine and a sliding gear transmission with 4 forward and 1 reverse gears.

The Farmall 230 row-crop tractor used the International Harvester C123 engine. It is a 2.0 L, 2,010 cm2, (122.7 cu·in) four-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. The compression ratio rating is 6.94:1. This engine produced 25.3 PS (18.6 kW; 24.9 HP) at 1,800 rpm of PTO output power (claimed).

The Farmall 230 is equipped with manual steering, differential mechanical dry disc brakes, open operator station and 41.6 liters (11 US gal.; 9.2 Imp. gal) fuel tank.

Farmall 230 Specifications

General Specifications
Model Farmall 230
Length –
Width –
Height –
Wheel base –
Weight 1,560 kg (3,439 lbs)
Fuel tank capacity 41.6 liters (11 US gal.; 9.2 Imp. gal)
Battery –
Cabin type Open operator station
Engine
Engine model International Harvester C123
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.0 L, 2,010 cm2, (122.7 cu·in)
Bore and stroke 79.0 mm X 120.0 mm (3.11 in X 4.72 in)
Compression ratio 6.94:1
Horsepower 25.3 PS (18.6 kW; 24.9 HP) at 1,800 rpm
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 14.2 L (15 US. qt, 12.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical dry disc
Transmission model –
Transmission type Sliding gear
Gears 4 forward and 1 reverse
Speed Forward: 18.8 kmh (11.7 mph) Reverse: 5.5 kmh (3.4 mph)
Tires
Front tires Ag: 5.00-15
Rear tires Ag: 11.2-36
PTO (Power take-off shaft)
Rear PTO type –
Rear PTO speed 540 rpm
