Ford 2000 (1965-1975)

Ford 2000 (2-nd gen: 1965-1975) tractor specifications: gasoline and diesel engine and transmission, dimensions and weight, fluid capacity and service data, tyres size, attachments, serial numbers

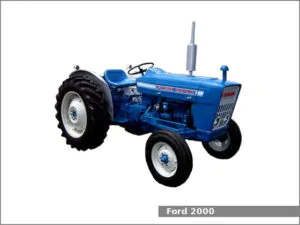

Ford 2000 (1965-1975)The Ford 2000 is a 2WD utility tractor manufactured by Ford in Highland Park, Michigan, USA from 1962 to 1975. The first generation was manufactured from 1962 to 1965, the second generation from 1965 to 1975.

The second generation of the Ford 2000 is equipped with one of two engines: a 2.6 L (158.0 cu·in) three-cylinder gasoline engine or a 2.6 L (158.0 cu·in) three-cylinder diesel engine and four variants of transmission.

The Ford 2000 used manual or power (optional) steering, differential mechanical expanding shoe brakes, open operator station and 49.2 liters (13.0 US gal.; 10.8 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Ford gasoline engine. It is a 2.6 L, 2,588 cm2, (158.0 cu·in) three-cylinder natural aspirated gasoline engine with 106.7 mm (4.2 in) of the cylinder bore and 96.0 mm (3.78 in) of the piston stroke. The compression ratio rating is 7.75:1. This engine produced 36.4 PS (26.8 kW; 36.0 HP) at 1,900 rpm (early) or 2,000 rpm (later) of maximum output power and 139.3 Nm (14.21 kg·m; 102.8 lbf·ft) at 1,350 rpm of peak torque.
  • Ford diesel engine. It is a 2.6 L, 2,588 cm2, (158.0 cu·in) three-cylinder natural aspirated diesel engine. The cylinder bore is 106.7 mm (4.2 in) and the piston stroke is 96.0 mm (3.78 in). The compression ratio rating is 17.5:1. This engine produced 36.4 PS (26.8 kW; 36.0 HP) at 2,000 rpm of maximum output power and 143.2 Nm (14.61 kg·m; 105.68 lbf·ft) of peak torque.

Transmission variants:

  • 4-speed: unsynchronized gear type transmission with dry disc clutch. This transmission has 4 forward and 1 reverse gears (forward speed: 6.4-23.8 kmh, 4.0-14.8 mph, reverse speed: 6.8 kmh, 4.2 mph). Tractor must be stopped before shifting. The 4-speed transmission uses the ESN-M2C77A or M-4864-A oil type, trasmission oil capacity is 6.2 liters (6.55 US.qts, 5.46 Imp. qts).
  • 6-speed: unsynchronized gear type transmission with dry disc clutch with cerametallic buttons. This transmission has 6 forward and 2 reverse gears (forward speed: 2.3-28.0 kmh, 1.4-17.4 mph, reverse speed: 3.9-11.3 kmh, 2.4-7.0 mph). Three speeds and reverse in two ranges. The 6-speed variant was only available with transmission PTO.
  • 8-speed: unsynchronized gear type transmission with dry disc clutch. This transmission has 8 forward and 2 reverse gears (forward speed: 2.6-28.0 kmh, 1.6-17.4 mph, reverse speed: 3.9-13.5 kmh, 2.4-8.4 mph). Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting. A Live PTO was optionally available with the 8-speed transmission. The 8-speed transmission uses the ESN-M2C77A or M-4864-A oil type, trasmission oil capacity is 12.5 liters (13.21 US.qts, 11.0 Imp. qts).
  • 12-speed: unsynchronized gear type transmission with over/under lever and dry disc clutch. This transmission has 12 forward and 3 reverse gears (forward speed: 4.3-35.4 kmh, 2.7-22.0 mph, reverse speed: 4.5-10.1 kmh, 2.8-6.3 mph). Over/under located to the left of the shift lever. Tractor must be stopped before shifting. This transmission uses the
    ESN-M2C77A or M-4864-A oil type, trasmission oil capacity is 6.6 liters (7.0 US.qts, 5.8 Imp. qts).

Following attachments are available for the Ford 2000 utility tractor:

  • Ford 771 loader
  • Ford 772 loader

General specifications

General Specifications
ModelFord 2000
Tractor typeUtility tractor
Production years1965-1975
ManufacturerFord
FactoryHighland Park, Michigan, USA
Dimensions and weight
Length3,210 mm (126.4 in)
Width1,600 mm (63 in)
Height2,020 mm (79.5 in)
Wheelbase1,920 mm (75.6 in)
Weight (ballasted)2,730 kg (6,020 lbs)
Fluid capacity
Fuel tank capacity49.2 liters (13.0 US gal.; 10.8 Imp. gal)
Oil capacity7.6 liters (8.0 US.qts, 6.7 Imp. qts)
Coolant capacity12.5 liters (13.2 US.qts, 11.0 Imp. qts))
Hydraulic fluid capacity:23.8 liters (25.2 US.qts, 20.9 Imp. qts)
Steering box capacity0.9 L (0.95 US.qts, 0.8 Imp. qts)
Power steering system capacity2.1 L (2.2 US.qts, 1.85 Imp. qts)
Trasmission oil capacity 4-speed: 6.2 liters (6.55 US.qts, 5.46 Imp. qts)
8-speed: 12.5 liters (13.21 US.qts, 11 Imp. qts)
12-speed: 6.6 liters (7.0 US.qts, 5.8 Imp. qts)
Electrical system
GroundNegative
Generator12V Shunt Wound
Generator output22A
RegulatorCurrent/Voltage
Battery12V, 80Ah (gas), 128Ah (diesel)

Engine

Gasoline engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeGasoline
Displacement2.6 L, 2,588 cm2, (158.0 cu·in)
Bore and stroke106.7 mm X 96.0 mm (4.2 in X 3.78 in)
Compression ratio7.75:1
Horsepower36.4 PS (26.8 kW; 36.0 HP) at 1,900-2,000 rpm
Torque139.3 Nm (14.21 kg·m; 102.8 lbf·ft) at 1,350 rpm
StarterElectric
Oil typeSAE 10W-30, 5W-20
Oil capacity:7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity:12.5 L (13.2 US. qt, 11 Imp. qt.)
Spark plugAutolite AG5
Spark plug gap0.635 mm (0.025 in)
Point gap0.558-0.711 mm (0.022-0.028 in)
Diesel engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.6 L, 2,588 cm2, (158.0 cu·in)
Bore and stroke106.7 mm X 96.0 mm (4.2 in X 3.78 in)
Compression ratio17.5:1
Horsepower36.4 PS (26.8 kW; 36.0 HP) at 2,000 rpm
Torque 143.2 Nm (14.61 kg·m; 105.68 lbf·ft) at 1,200 rpm
StarterElectric
Oil typeSAE 20, 30, 10W
Oil capacity:7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity:12.5 L (13.2 US. qt, 11 Imp. qt.)
Intake valve clearance:0.36-0.41 mm (0.014-0.016 in)
Exhaust valve clearance:0.43-0.48 mm (0.017-0.019 in)

Transmission and chassis

Transmission and chassis
Chassis4×2 2WD
Steering typeManual or power (optional)
Steering box capacity0.9 L (0.95 US.qts, 0.8 Imp. qts)
Power steering system capacity2.1 L (2.2 US.qts, 1.85 Imp. qts)
BrakesDifferential mechanical expanding shoe
Differential lockMechanical rear
12-speed transmission
Transmission typeUnsynchronized gear with dry disc clutch
Gears12 forward and 3 reverse
Speed Forward: 35.4 kmh (22.0 mph) Reverse: 10.1 (6.3 mph)
Transmission oil capacity6.6 liters (7.0 US.qts, 5.8 Imp. qts)
Transmission oil type ESN-M2C77A
M-4864-A
4-speed transmission
Transmission typeUnsynchronized gear with dry disc clutch
Gears4 forward and 1 reverse
Speed Forward: 23.8 kmh (14.8 mph) Reverse: 6.8 (4.2 mph)
Transmission oil capacity6.2 liters (6.55 US.qts, 5.46 Imp. qts)
Transmission oil type ESN-M2C77A
M-4864-A
8-speed transmission
Transmission typeUnsynchronized gear with dry disc clutch
Gears8 forward and 2 reverse
Speed Forward: 28.0 kmh (17.4 mph) Reverse: 13.5 (8.4 mph)
Transmission oil capacity12.5 liters (13.21 US.qts, 11 Imp. qts)
Transmission oil type ESN-M2C77A
M-4864-A
6-speed transmission
Transmission typeUnsynchronized gear and dry disc clutch with cerametallic buttons
Gears6 forward and 2 reverse
Speed Forward: 28.0 kmh (17.4 mph) Reverse: 11.3 (7.0 mph)

Tires

Tire size
Front tiresAg: 5.50-16, 6.00-16
Rear tiresAg: 11.2-28, 12.4-28, 13.6-24, 16.9-24

PTO and Three-Point Hitch

Three-Point Hitch
CaterogyI
Control type
Lift capacity (at ends)1,270 kg (2,800 lbs)
PTO (Power take-off shaft)
Rear PTO type Transmission for 4/6/8-speed transmissions
Live for 8/12-speed transmissions
Rear PTO speed540 rpm

Hydraulic system

Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity23.8 L (25.15 US. qt, 20.94 Imp. qt.)
Pressure2500 psi (172.4 bar)
Valves2
Pump flow4.0 gpm (15.1 lpm)
Steering flow4.25 gpm (16.1 lpm)
Total flow8.25 gpm (31.2 lpm)

Attachments

Ford 771 Loader
Height (at pin)2,460 mm (97.0 in)
Lift (full at pin)816 kg (1,800 lbs)
Breakout1,224 kg (2,700 lbs)
Dump reach830 mm (33.0 in)
Dump clearance1,980 mm (78.0 in)
Bucket width1,520 mm (60 in)
Weight369 kg (815 lbs)
Ford 772 Loader
Height (at pin)2,540 mm (100.0 in)
Lift (full at pin)1,134 kg (2,500 lbs)
Breakout1,814 kg (4,000 lbs)
Dump reach1,010 mm (40.0 in)
Dump clearance2,030 mm (80.0 in)
Bucket width1,520 mm (60 in)
Weight478 kg (1,054 lbs)

Serial numbers

Serial numbers (Location on the right side of the tractor, on the starter mounting)
1965C100000
1966C124200
1967C161300
1968C190200
1969C226000
1970C257600
1971C292100
1972C327300
1973C367300
1974C405200
1975C450700
