Toro TimeCutter Z5000

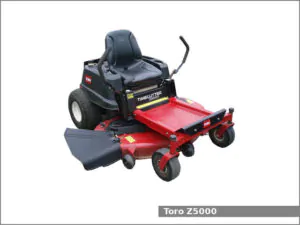

Toro Z5000The Toro Z5000 74370 is a 2WD zero-turn mower from the TimeCutter Z series. This tractor was manufactured by Toro from 2007 to 2008. The Toro Z5000 is equipped with a 0.6 L (36.4 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Z5000 zero-turn mower used the Kohler SV610 engine. It is a 0.6 L, 596 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 3,600 rpm of output power.

The Toro Z5000 is equipped with power steering, an open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and mid-mount 1,270 mm (50 in) mower deck with 3-blade and manual lift.

Toro Z5000 Specifications

General Specifications
ModelToro TimeCutter Z5000
Length1,850 mm (72.8 in)
Width
Height1,020 mm (40.2 in)
Wheel base
Weight
Fuel tank capacity11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery12V, CCA 195A
Cabin typeOpen operator station
Engine
Engine modelKohler SV610
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.6 L, 596 cm2, (36.4 cu·in)
Bore and stroke94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Horsepower21.4 PS (15.7 kW; 21.0 HP) at 3,600 rpm
StarterElectric
Oil capacity:1.5 L (1.6 US. qt, 1.3 Imp. qt.)
Spark plugChampion XC12YC
Transmission and chassis
Chassis4×2 2WD
Steering typePower
Brakes
Transmission modelHydro-Gear
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 11.3 kmh (7.0 mph) Reverse: 5.5 kmh (3.4 mph)
Tires
Front tires Lawn/turf: 10×4
Rear tires Lawn/turf: 10×9.5
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric clutch
Middle PTO speed
