International Harvester 504

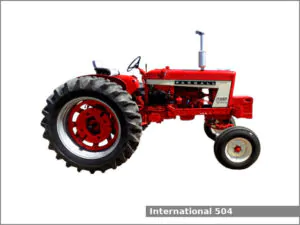

International Harvester 504The International Harvester 504 is a 2WD utility tractor manufactured by International Harvester from 1961 to 1968.

The International Harvester 504 is equipped with one of two engines: a 3.1 L (187.5 cu·in) four-cylinder diesel engine or a 2.5 L (152.1 cu·in) four-cylinder gasoline engine and one of two transmissions: an unsynchronized gear transmission with 5 forward and 1 reverse gear or a two-speed power shift transmission with 10 forward and 2 reverse gears.

The tractor could be equipped with the following engines:

  • International Harvester D188. It is a 3.1 L, 3,073 cm2, (187.5 cu·in) four-cylinder natural aspirated diesel engine with 94.0 mm (3.7 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 18.7:1.
  • International Harvester C153. It is a 2.5 L, 2,492 cm2, (152.1 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 86.0 mm (3.39 in) and the piston stroke is 108.0 mm (4.25 in).

International Harvester 504 Specifications

General Specifications
ModelInternational Harvester 504
Length
Width
Height
Wheel base
Ground clearance
Weight2,020 kg (4,453 lbs)
Fuel tank capacity
Battery12V
Cabin typeOpen operator station
Engine
Engine modelInternational Harvester D188
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement3.1 L, 3,073 cm2, (187.5 cu·in)
Bore and stroke94.0 mm X 112.0 mm (3.7 in X 4.41 in)
Compression ratio18.7:1
Horsepower
StarterElectric
Engine
Engine modelInternational Harvester C153
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeGasoline
Displacement2.5 L, 2,492 cm2, (152.1 cu·in)
Bore and stroke86.0 mm X 108.0 mm (3.39 in X 4.25 in)
Horsepower
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typePower
Brakes
Transmission model
Transmission typeUnsynchronized gear
Gears5 forward and 1 reverse
Transmission modelTorque Amplifier
Transmission typeTwo-speed power shift
Gears10 forward and 2 reverse
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 12.4-28
Three-Point Hitch
CategoryI
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 rpm
Hydraulic system
Hydraulic type
Pump flow12.0 gpm (45.4 lpm)
