Kubota M5660SU

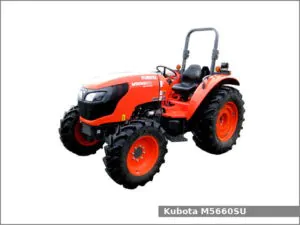

Kubota M5660SUThe Kubota M5660SU is a 2WD (M5660SUH) or 4WD (M5660SUHD) utility tractor from the M series. This tractor has been manufactured by Kubota since 2015. The Kubota M5660SU is equipped with a 2.4 L diesel engine and shuttle transmission with wet disc clutch and 8 forward and 8 reverse gears.

The Kubota M5660SU utility tractor used the Kubota V2403 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) turbocharged diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. This engine produced 58.8 PS (43.2 kW; 58.0 HP) at 2,600 rpm of output power.

The Kubota M5660SU is equipped with hydrostatic power steering, mechanical wet disc brakes, two-post foldable ROPS and 67.0 liters (17.7 US gal.; 14.7 Imp. gal) fuel tank.

Kubota M5660SU Specifications

General Specifications
ModelKubota M5660SU
Length 2WD: 3,520 mm (138.6 in)
4WD: 3,450 mm (136.0 in)
Width1,850 mm (72.8 in)
Height2,420 mm (95.3 in)
Wheel base 2WD: 2,080 mm (82.0 in)
4WD: 2,040 mm (80.7 in)
Weight 2WD: 1,900 kg (4,190 lbs)
4WD: 1,990 kg (4,390 lbs)
Fuel tank capacity67.0 liters (17.7 US gal.; 14.7 Imp. gal)
Cabin typeTwo-post foldable ROPS
Engine modelKubota V2403
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement2.4 L, 2434 cm2, (148.5 cu·in)
Bore and stroke87.0 mm X 102.0 mm (3.43 in X 4.02 in)
Horsepower58.8 PS (43.2 kW; 58.0 HP) at 2,600 rpm
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesMechanical wet disc
Differential lockMechanical rear
Transmission model
Transmission typeShuttle with wet disc clutch
Gears8 forward and 8 reverse
Speed Forward: 29.3 kmh (18.2 mph) Reverse: 29.9 (18.6 mph)
Front tiresAg: 6.5-16 (2WD), 8.3-24 (4WD)
Rear tiresAg: 14.9-28
Three-Point Hitch
Control typePosition control
Lift capacity (at ends)1,500 kg (3,310 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with electro-hydraulic wet disc clutch
Rear PTO speed540, 540/540E rpm
Hydraulic system
Hydraulic typeOpen center
Valves1 to 3
Pump flow10.6 gpm (40.1 lpm)
