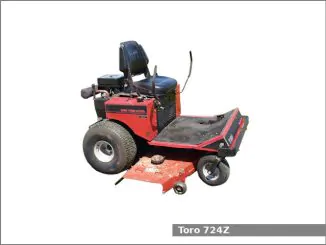

Toro Proline 724-Z

Toro Proline 724-ZThe Toro Proline 724-Z is a 2WD zero-turn mower manufactured by Toro from 1993 to 1995. The Toro 724Z is equipped with a 1.0 L (59.7 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Toro 724-Z zero-turn mower used the Onan P224G engine. It is a 1.0 L, 978 cm2, (59.7 cu·in) two-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of output power.

Following attachments are available for the Toro Proline 724-Z zero-turn mower:

  • Mid-mount Wheel Horse 50 in (1,270 mm) mower deck with 3-blade
  • Mid-mount Wheel Horse 60 in (1,520 mm) mower deck with 3-blade

Toro Proline 724-Z Specifications

General Specifications
Model Toro Proline 724-Z
Length 1,820 mm (71.7 in)
Width 1,210 mm (47.6 in)
Height 1,210 mm (47.6 in)
Wheel base 1,060 mm (41.7 in)
Weight 453 kg (999 lbs)
Fuel tank capacity
Battery 12V
Cabin type Open operator station
Engine
Engine model Onan P224G
Engine type Four-stroke, air-cooled
Cylinders 2
Fuel type Gasoline
Displacement 1.0 L, 978 cm2, (59.7 cu·in)
Bore and stroke 90.0 mm X 76.0 mm (3.54 in X 2.99 in)
Horsepower 24.3 PS (17.9 kW; 24.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes
Final drive Chain
Transmission model Eaton 700
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.7 kmh (6 mph) Reverse: 9.7 kmh (6 mph)
Tires
Front tires Ag: 13×5.00-6
Rear tires Ag: 22×11.00-8
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
