Toro TimeCutter Z4200

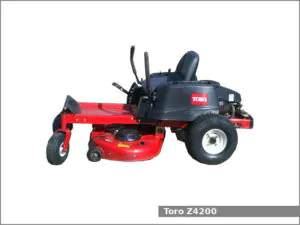

Toro Z4200The Toro TimeCutter Z4200 is a 2WD zero-turn mower from the TimeCutter Z series. This tractor was manufactured by Toro from 2007 to 2010. The Toro Z4200 is equipped with a 0.6 L (36.4 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Toro Z4200 zero-turn mower used the Kohler SV590 engine. It is a 0.6 L, 596 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. This engine produced 19.3 PS (14.2 kW; 19.0 HP) at 3,600 rpm of output power.

The Z4200 zero-turn mower is equipped with power steering, an open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and mid-mount 1,060 mm (42 in) mower deck with 2-blade and manual lift.

Toro Z4200 Specifications

General Specifications
Model Toro TimeCutter Z4200
Length 1,850 mm (72.8 in)
Width
Height 1,020 mm (40.2 in)
Wheel base
Weight
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V, CCA 195A
Cabin type Open operator station
Engine
Engine model Kohler SV590
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.6 L, 596 cm2, (36.4 cu·in)
Bore and stroke 94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Horsepower 19.3 PS (14.2 kW; 19.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.5 L (1.6 US. qt, 1.3 Imp. qt.)
Spark plug Champion XC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes
Transmission model Hydro-Gear EZT
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 5.5 kmh (3.4 mph)
Tires
Front tires Lawn/turf: 10×4
Rear tires Lawn/turf: 18×7.5
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
