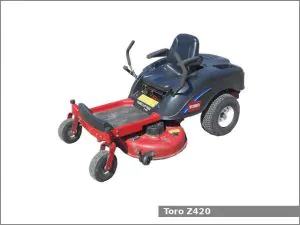

The Toro Z420 is a 2WD zero-turn mower from the TimeCutter Z series. This tractor was manufactured by Toro from 2005 to 2006. The Toro Z420 is equipped with a 0.5 L (28.4 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Toro Z420 zero-turn mower used the Briggs & Stratton 286H77 engine. It is a 0.5 L, 465 cm2, (28.4 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm of output power.
The Toro Z420 is equipped with power steering, an open operator station, 7.6 liters (2.0 US gal.; 1.7 Imp. gal) fuel tank, and mid-mount Toro 42 inches (1,060 mm) mower deck with 2-blade with manual lift.
Toro Z420 Specifications
|Fuel tank capacity||7.6 liters (2 US gal.; 1.7 Imp. gal)|
|Cabin type||Open operator station|
|Engine model||Briggs & Stratton 286H77|
|Engine type||Four-stroke, air-cooled|
|Displacement||0.5 L, 465 cm2, (28.4 cu·in)|
|Bore and stroke||87.0 mm X 78.0 mm (3.43 in X 3.07 in)|
|Horsepower||16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm|
|Transmission and chassis|
|Gears||Infinite forward and reverse|
|Speed||Forward: 9.7 kmh (6 mph) Reverse: 5.5 kmh (3.4 mph)|
|Front tires||Lawn/turf: 10×4|
|Rear tires||Lawn/turf: 18×7.5|
|PTO (Power take-off shaft)|
|Middle PTO type||Independent with electric clutch|
|Middle PTO speed||–|
