Toro MX5060

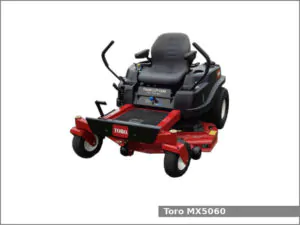

Toro MX5060The Toro MX5060 is a 2WD zero-turn mower from the TimeCutter MX series. This mower was manufactured by Toro from 2012 to 2014. The Toro MX5060 is equipped with a 0.7 L (44.3 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Toro MX5060 zero turn mower used the Kawasaki FR691V engine. It is a 0.7 L, 726 cm2, (44.3 cu·in) two-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at rpm of output power.

The Toro MX5060 is equipped with power steering, open operator station, 11.5 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and mid-mount the Toro 50 in (1,270 mm) mower deck with 3-blade with manual lever lift.

Toro MX5060 Specifications

General Specifications
Model Toro MX5060
Length 1,850 mm (72.8 in)
Width
Height 1,070 mm (42.1 in)
Wheel base
Weight
Fuel tank capacity 11.5 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V, CCA 195A
Cabin type Open operator station
Engine
Engine model Kawasaki FR691V
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 726 cm2, (44.3 cu·in)
Bore and stroke 78.0 mm X 76.0 mm (3.07 in X 2.99 in)
Horsepower 23.4 PS (17.2 kW; 23.1 HP) at rpm
Starter Electric
Oil type API SF, SG, SH, SJ, or SL
SAE 5W-20, 10W-30, or 10W-40
Oil capacity: 2.1 L (2.2 US. qt, 1.8 Imp. qt.)
Spark plug NGK BPR4ES
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes
Transmission model Hydro-Gear ZT-2800
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 4.8 (3 mph)
Tires
Front tires Lawn/turf: 13×5
Rear tires Lawn/turf: 20×10
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
Hydraulic system
Hydraulic type
Hydraulic capacity 4.5 L (4.76 US. qt, 3.96 Imp. qt.)
