David Brown 995

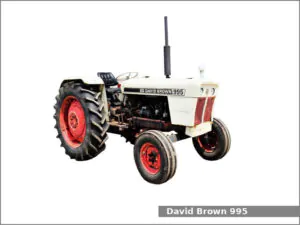

David Brown 995The David Brown 995 is a 2WD utility tractor manufactured by David Brown in Meltham Mills, Huddersfield, England from 1971 to 1980. The David Brown 995 is equipped with a 3.6 L (219.3 cu·in) four-cylinder diesel engine and a synchromesh transmission with 12 forward and 4 reverse gears.

The David Brown 995 utility tractor used the David Brown engine. It is a 3.6 L, 3,594 cm2, (219.3 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 64.9 PS (47.7 kW; 64.0 HP) at 2,200 rpm of output power.

The David Brown 995 is equipped with hydrostatic power steering, hydraulic drum brakes, open operator station or Quiet Cab (optional), and 60.6 liters (16 US gal.; 13.3 Imp. gal) fuel tank.

David Brown 995 Specifications

General Specifications
ModelDavid Brown 995
Length3,300 mm (129.9 in)
Width1,700 mm (66.9 in)
Height2,510 mm (98.8 in)
Wheel base2,080 mm (81.9 in)
Ground clearance400 mm (15.7 in)
Weight2,610 kg (5,754 lbs)
Fuel tank capacity60.6 liters (16 US gal.; 13.3 Imp. gal)
Battery12V, 96Ah
Cabin typeOpen operator station or Quiet Cab (optional)
Engine
Engine modelDavid Brown
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement3.6 L, 3,594 cm2, (219.3 cu·in)
Bore and stroke100.0 mm X 114.0 mm (3.94 in X 4.49 in)
Compression ratio17.0:1
Horsepower64.9 PS (47.7 kW; 64.0 HP) at 2,200 rpm
StarterElectric
Coolant capacity:13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeHydrostatic power
BrakesHydraulic drum
Transmission model
Transmission typeSynchromesh
Gears12 forward and 4 reverse
Tires
Front tiresAg: 7.50-16
Rear tiresAg: 16.9-30, 13.6-36
Three-Point Hitch
CaterogyII/I
Control type
Lift capacity (at ends)910 kg (2,007 lbs)
PTO (Power take-off shaft)
Rear PTO typeLive
Rear PTO speed540/1,000 rpm
Hydraulic system
Hydraulic typeGear pump
Pump flow7.4 gpm (28 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
