David Brown 996

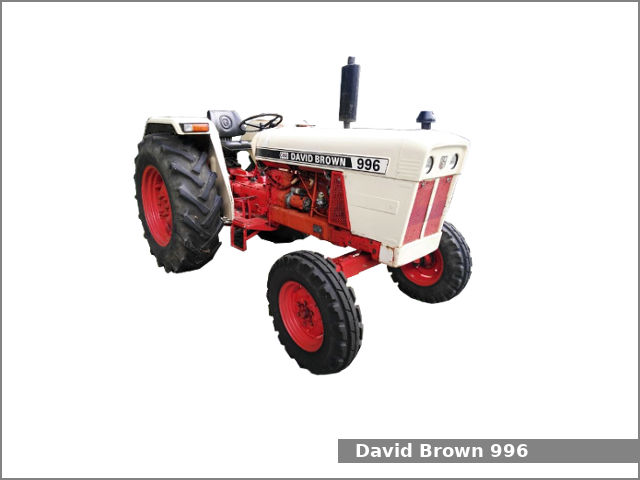

David Brown 996The David Brown 996 is a 2WD utility tractor manufactured by David Brown in Meltham Mills, Huddersfield, England from 1971 to 1980. The David Brown 996 is equipped with a 3.6 L (219.3 cu·in) four-cylinder diesel engine and a synchromesh transmission with 12 forward and 4 reverse gears.

The David Brown 996 utility tractor used the David Brown engine. It is a 3.6 L, 3,594 cm2, (219.3 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 64.9 PS (47.7 kW; 64 HP) at 2,200 rpm of output power.

The David Brown 996 is equipped with hydrostatic power steering, hydraulic drum brakes, open operator station or Quiet Cab (optional), and 60.6 liters (16 US gal.; 13.3 Imp. gal) fuel tank.

David Brown 996 Specifications

General Specifications
Model David Brown 996
Length 3,300 mm (129.9 in)
Width 1,700 mm (66.9 in)
Height 2,510 mm (98.8 in)
Wheel base 2,080 mm (81.9 in)
Ground clearance 400 mm (15.7 in)
Weight 2,610 kg (5,754 lbs)
Fuel tank capacity 60.6 liters (16 US gal.; 13.3 Imp. gal)
Battery 12V, 96Ah
Cabin type Open operator station or Quiet Cab (optional)
Engine
Engine model David Brown
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.6 L, 3,594 cm2, (219.3 cu·in)
Bore and stroke 100.0 mm X 114.0 mm (3.94 in X 4.49 in)
Compression ratio 17.0:1
Horsepower 64.9 PS (47.7 kW; 64 HP) at 2,200 rpm
Starter Electric
Coolant capacity: 13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Hydraulic drum
Transmission model
Transmission type Synchromesh
Gears 12 forward and 4 reverse
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30, 13.6-36
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at ends) 910 kg (2,010 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type Gear pump
Pump flow 7.4 gpm (28 lpm)
