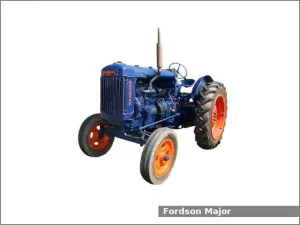

Fordson Major E27N

Fordson Major E27NThe Fordson E27N Major is a 2WD tractor from the series manufactured by Fordson (a part of Ford) in Dagenham, England from 1945 to 1952. The Fordson E27N Major was known simply as the the Fordson Major until 1953, when the Fordson E1A New Major entered production.

The Fordson E27N Major is equipped with one of two engines: a 4.4 L (267.0 cu·in) four-cylinder gasoline engine or a 4.7 L (288.0 cu·in) six-cylinder diesel engine and a gear type transmission with 3 forward and 1 reverse gears.

The Fordson Major used manual steering, mechanical drum foot brakes, wet disc hand brake brakes, open operator station and 79.5 liters (21 US gal.; 17.5 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Ford. It is a 4.4 L, 4,375 cm2, (267.0 cu·in) four-cylinder natural aspirated gasoline engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 27.3 PS (20.1 kW; 27.0 HP) at 1,200 rpm of output power.
  • Perkins. It is a 4.7 L, 4,719 cm2, (288.0 cu·in) six-cylinder natural aspirated diesel engine. The cylinder bore is 89.0 mm (3.5 in) and the piston stroke is 127.0 mm (5 in). This engine produced 45.7 PS (33.6 kW; 45.1 HP) at 1,500 rpm of output power.

Fordson Major Specifications

General Specifications
Model Fordson Major
Length 3,370 mm (132.7 in)
Width 1,650 mm (65 in)
Height 2,080 mm (81.9 in)
Wheel base 1,950 mm (76.8 in)
Ground clearance 410 mm (16.1 in)
Weight 1,970 kg (4,343 lbs)
Fuel tank capacity 79.5 liters (21 US gal.; 17.5 Imp. gal)
Battery 12V, 57Ah
Cabin type Open operator station
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 4.4 L, 4,375 cm2, (267.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower 27.3 PS (20.1 kW; 27 HP) at 1,200 rpm
Starter Electric
Oil capacity: 11.9 L (12.6 US. qt, 10.5 Imp. qt.)
Coolant capacity: 45.5 L (48.1 US. qt, 40.0 Imp. qt.)
Engine
Engine model Perkins
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 4.7 L, 4,719 cm2, (288.0 cu·in)
Bore and stroke 89.0 mm X 127.0 mm (3.5 in X 5 in)
Horsepower 45.7 PS (33.6 kW; 45.1 HP) at 1,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical drum foot brakes, wet disc hand brake
Transmission model
Transmission type Gear type
Gears 3 forward and 1 reverse
Speed Forward: 15.5 kmh (9.6 mph) Reverse: 6.5 kmh (4 mph)
Transmission oil capacity 12.5 L (3.3 US. gal, 2.7 Imp. gal.)
Tires
Front tires Ag: 6.00-19
Rear tires Ag: 11.00-36
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 540 rpm
