Cub Cadet LTX 1050 VT

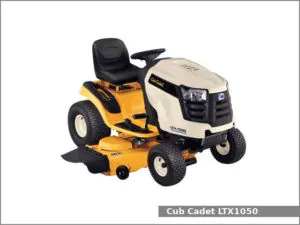

Cub Cadet LTX 1050 VTThe Cub Cadet LTX 1050 VT is a 2WD lawn tractor from the LTX 1000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2009 to 2010. The Cub Cadet LTX 1050 VT is equipped with a 0.7 L V-twin gasoline engine and Hydrostatic transmission with Infinite forward and reverse gears.

The Cub Cadet LTX 1050 VT lawn tractor used the Briggs & Stratton 44M777 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet LTX1050 VT is equipped with the manual sector and pinion steering, disc brakes, open operator station, and 12.5 liters (3.3 US gal.; 2.7 Imp. gal) fuel tank. The LTX1050 VT used mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades with manual lift.

Cub Cadet LTX1050VT Specifications

General Specifications
Model Cub Cadet LTX 1050 VT
Length 1750 mm (68.9 in)
Width
Height
Wheel base 1,200 mm (47.2 in)
Weight 248 kg (547 lbs)
Fuel tank capacity 12.5 liters (3.3 US gal.; 2.7 Imp. gal)
Battery 12V, CCA 190A
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 44M777
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 79.0 mm X 73.0 mm (3.11 in X 2.87 in)
Horsepower 24.3 PS (17.9 kW; 24 HP) at 3,600 rpm
Starter Electric
Oil type SAE 10W-40,
Oil capacity: 1.8 L (1.9 US. qt, 1.58 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual sector and pinion
Brakes Disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 (2.3 mph)
Transmission oil capacity 2.0 L (0.5 US. gal, 0.4 Imp. gal.)
Tires
Front tires Lawn/turf: 15×6
Rear tires Lawn/turf: 20×10
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped
