Hesston 130-90

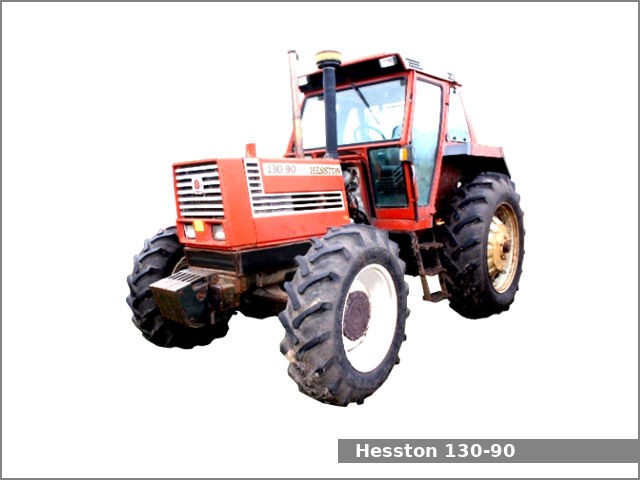

Hesston 130-90The Fiat-Hesston 130-90 is a 2WD farm tractor manufactured by the Fiat for Hesston from 1985 to 1990. The Fiat-Hesston 130-90 is equipped with 5.9 L six-cylinder diesel engine and shuttle transmission with 16 forward and 16 reverse gears.

The Hesston 130-90 farm tractor used 5.9 L, 5861 cm2, (357.66 cu·in) six-cylinder turbocharged Fiat 8065.25 diesel engine with 104.0 mm (4.09 in) of cylinder bore and 115.0 mm (4.53 in) of piston stroke. The compression ratio rating is 16.5:1. This engine produced 130 PS (95.6 kW; 128 HP) at 2,500 rpm of maximum output power. The Fiat 8065.25 engine used inline fuel injection pump and dry type air-cleaner with centrifugal type pre-cleaner.

The Hesston 130-90 is equipped with the independent hydrostatic adjustable steering column, disc type hydraulically operated brakes, cabin with air conditioning and 280 liters (74 US gal.; 61.6 Imp. gal) fuel tank.

Hesston 130-90 Specifications

General Specifications
Model Fiat-Hesston 130-90
Length 4,130 mm (162.6 in)
Width
Height 2,840 mm (111.8 in)
Wheel base 2,740 mm (107.9 in)
Weight 7,430 kg (16,380 lbs)
Fuel tank capacity 280 liters (74 US gal.; 61.6 Imp. gal)
Battery 12V 65A
Cabin type Supercomfort cab with air conditioning
Engine
Engine model Fiat 8065.25
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.9 L, 5,861 cm2, (357.66 cu·in)
Bore and stroke 104.0 mm X 115.0 mm (4.09 in X 4.53 in)
Compression ratio 16.5:1
Horsepower 130 PS (95.6 kW; 128 HP) at 2500 rpm
Torque
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Independent hydrostatic adjustable steering column
Brakes Disc type, hydraulically operated
Final drive Epicyclic
Transmission model
Transmission type Shuttle (fully sinchromech)
Gears 16 forward and 16 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 23.2 (14.4 mph)
Transmission model
Transmission type Creeper
Gears 24 forward and 8 reverse
Transmission model
Transmission type Partial power shift (four power-shift gears in fou
Gears 16 forward and reverse
Tires
Front tires Ag: 11.00-16
Rear tires Ag: 18.4-38
Three-Point Hitch
Caterogy II/III
Control type Draft, position and mixed control
Lift capacity 7,420 kg (16,361 lbs)
PTO (Power take-off shaft)
Rear PTO type Fully independent, hydraulically operated
Rear PTO spped 540/1000 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 2,450 L (2588.89 US. qt, 2155.7 Imp. qt.)
Valves 3
Pump flow 13.4 gpm (50.7 lpm)
