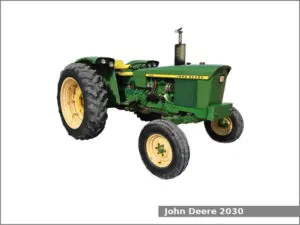

John Deere 2030The John Deere 2030 is a 2WD utility tractor from the Generation II series. This tractor was manufactured by John Deere in Dubuque, Iowa, USA and Mannheim, Baden-Württemberg, Germany from 1971 to 1975.

The JD 2030 is equipped with a 3.6 L four-cylinder diesel or gasoline engine and one of three variants of the transmission. The JD 2030 used power assist steering, hydraulic wet disc brakes, open operator station or two-post ROPS with canopy (optional) and 73.8 liters (19.5 US gal.; 16.2 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • John Deere diesel. It is a 3.6 L, 3,595 cm2, (219.4 cu·in) four-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.2:1. This engine produced 69 PS (50.7 kW; 68.0 HP) at 2,500 rpm of output power.
  • John Deere gasoline. It is a 3.6 L, 3,595 cm2, (219.4 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 102.0 mm (4.02 in) and the piston stroke is 110.0 mm (4.33 in). The compression ratio rating is 8.0:1.

John Deere 2030 Specifications

General Specifications
ModelJohn Deere 2030
Length3,540 mm (139.4 in)
Width1,760 mm (69.3 in)
Height2,060 mm (81.1 in)
Wheel base2,170 mm (85.4 in)
Weight2,370 kg (5,225 lbs)
Fuel tank capacity73.8 liters (19.5 US gal.; 16.2 Imp. gal)
Battery12V, CCA 370A
Cabin typeOpen operator station or two-post ROPS with canopy (optional).
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement3.6 L, 3,595 cm2, (219.4 cu·in)
Bore and stroke102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Compression ratio16.2:1
Horsepower69 PS (50.7 kW; 68.0 HP) at 2,500 rpm
StarterElectric
Oil capacity:5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity:11.4 L (12 US. qt, 10 Imp. qt.)
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeGasoline
Displacement3.6 L, 3,595 cm2, (219.4 cu·in)
Bore and stroke102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Compression ratio8.0:1
Horsepower
Starterelectric
Oil capacity:5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity:11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower assist
BrakesHydraulic wet disc
Transmission model
Transmission typeCollar shift
Gears8 forward and 4 reverse
Speed Forward: 27.8 kmh (17.3 mph) Reverse: 8.2 (5.1 mph)
Transmission oil capacity37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission modelCollar Shift – Hi/Lo
Transmission typePartial power shift with dry disc clutch
Gears16 forward and 8 reverse
Speed Forward: 27.8 kmh (17.3 mph) Reverse: 8.2 (5.1 mph)
Transmission oil capacity37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission modelCollar shift – Reverser
Transmission type
Gears8 forward and 8 reverse
Transmission oil capacity37.9 L (10 US. gal, 8.3 Imp. gal.)
Tires
Front tiresAg: 6.00-16, 7.50-16
Rear tiresAg: 13.6-28, 13.6-38, 14.9-28, 15.5-38
Three-Point Hitch
CaterogyII/I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Middle PTO typeOptional
Middle PTO speed1,000 rpm
Rear PTO typeLive or independent
Rear PTO speed540, 540/1,000 rpm
Hydraulic system
Hydraulic typeClosed center
Hydraulic capacity37.9 L (40.05 US. qt, 33.35 Imp. qt.)
Pressure2250 psi (155.1 bar)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.

1 Comment

  1. checking your data on the John Deere 2030 tractor, I own one, U.S. manufacture. Concerning gears, there are only 4 reverse speeds (only 1 reverse selection vs 2 (high and low) forward selections. In addition, the tractor width (from outside of rear tires side to side is almost 90 inches, NOT the 69 inches in your data.
