John Deere 6430

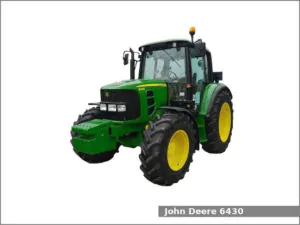

John Deere 6430The John Deere 6430 is a 2WD or 4WD tractor from the 6030 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2007 to 2012.

The John Deere 6430 is equipped with one of two a 4.5 L (276.0 cu·in) four-cylinder diesel engines and one of four variants of transmission.

The tractor could be equipped with the following engines:

  • John Deere 4045HL281 PowerTech E (2007-2009). It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 116.7 PS (85.8 kW; 115.0 HP) at 2,300 rpm of output power and 466.5 N·m (47.6 kg·m, 343.8 ft·lb) at 1,500 rpm of torque.
  • John Deere 4045HL288 PowerTech E (after 2010). It is a 4.5 L, 4,523 cm2, (276.0 cu·in) six-cylinder turbocharged diesel engine. The cylinder bore is 106.0 mm (4.17 in) and the piston stroke is 127.0 mm (5 in). The compression ratio rating is 19.0:1. This engine produced 121.7 PS (89.5 kW; 120.0 HP) at 2,300 rpm of output power and 466.5 N·m (47.6 kg·m, 343.8 ft·lb) at 1,600 rpm of torque.

The JD 6430 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post ROPS or cab (optional), and 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank.

John Deere 6430 Specifications

General Specifications
Model John Deere 6430
Length
Width
Height
Wheel base 2,400 mm (94.5 in)
Ground clearance 460 mm (18.1 in)
Weight 4,540 kg (10,009 lbs)
Fuel tank capacity 165.0 liters (43.6 US gal.; 36.3 Imp. gal)
Battery 12V
Cabin type Two-post ROPS or Cab (optional)
Engine
Engine model John Deere 4045HL281 PowerTech E
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 19.0:1
Horsepower 116.7 PS (85.8 kW; 115.1 HP) at 2,300 rpm
Torque 466.5 N·m (47.6 kg·m, 343.8 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 15.9 L (16.8 US. qt, 14 Imp. qt.)
Coolant capacity: ROPS: 26.5 L (28 US. qt, 23.3 Imp. qt.)
Cab: 29.1 L (30.7 US. qt, 25.6 Imp. qt.)
Engine
Engine model John Deere 4045HL288 PowerTech E
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 19.0:1
Horsepower 121.7 PS (89.5 kW; 120 HP) at 2,300 rpm
Torque 466.5 N·m (47.6 kg·m, 343.8 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 15.9 L (16.8 US. qt, 14 Imp. qt.)
Coolant capacity: ROPS: 26.5 L (28 US. qt, 23.3 Imp. qt.)
Cab: 29.1 L (30.7 US. qt, 25.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model SyncroPlus
Transmission type Fully synchronized
Gears 12 forward and 4 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 21.2 (13.2 mph)
Transmission oil capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission model PowrReverser
Transmission type Synchronized with power shuttle
Gears 16 forward and 16 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 32.0 (19.9 mph)
Transmission oil capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission model PowrQuad
Transmission type Partial power shift with wet disc clutch
Gears 16 forward and 16 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 32.0 (19.9 mph)
Transmission oil capacity PowrQuad: 48.8 L (12.9 US. gal, 10.7 Imp. gal.)
PowrQuad Plus: 50.0 L (13.2 US. gal, 11 Imp. gal.)
Transmission model PowrQuad
Transmission type Partial power shift
Gears 24 forward and 24 reverse
Speed Forward: 40.2 kmh (25.0 mph)
Transmission oil capacity 50.0 L (13.2 US. gal, 11 Imp. gal.)
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category III/II
Control type
Lift capacity (at ends) 2,020 kg (4,455 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/1000 rpm
Hydraulic system
Hydraulic type Open-center load sensing or closed-center pressure-flow compensated (optional)
Hydraulic capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Valves 1 to 3
Total flow 21.1 gpm (79.9 lpm)
29.0 gpm (109.8 lpm)
