Kubota L2501

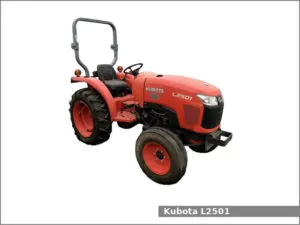

Kubota L2501The Kubota L2501 is a 2WD/4WD compact utility tractor from the L-series. This tractor has been manufactured by the Kubota from 2014. The Kubota L2501 is equipped with 1.6 L three-cylinders diesel engine and one of two transmissions: gear type transmission with dry disc clutch (8 forward and 4 reverse gears) or hydrostatic transmission (infinite forward and reverse in 3-range).

The Kubota L2501 utility tractor used the Kubota D1703-M-DI-E4. It is a 1.6 L, 1,647 cm2, (100.5 cu·in) three-cylinders direct injection diesel engine with 87.0 mm (3.43 in) of cylinder bore and 92.4 mm (3.64 in) of piston stroke. This engine produced 25.2 PS (18.5 kW; 24.8 HP) of gross output power and 24.2 PS (17.8 KW; 23.9 HP) of net horsepower.

The Kubota L2501 is equipped with integral type power steering, mechanical wet disc brakes, open operator station with two-post folding ROPS (rollover protection structure) and 38.0 liters (10 US gal.; 8.4 Imp. gal) fuel tank.

Following attachments are available for Kubota L2501 utility tractor:

  • Kubota LA525 loader
  • Kubota BH77 backhoe

Kubota L2501 Specifications

General Specifications
Model Kubota L2501
Length 2WD: 2,810 mm (110.6 in)
4WD and HST: 2,700 mm (106.3 in)
Width 1,400 mm (55.1 in)
Height 1,475 mm (58.1 in)
Wheel base 1,610 mm (63.4 in)
Weight 1,100 kg (2425.1 lbs)
Fuel tank capacity 38.0 liters (10 US gal.; 8.4 Imp. gal)
Battery 12V, CCA 490A
Cabin type Open operator station with Two-post folding ROPS
Engine model Kubota D1703-M-DI-E4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,647 cm2, (100.5 cu·in)
Bore and stroke 87.0 mm X 92.4 mm (3.43 in X 3.64 in)
Compression ratio
Horsepower Gross: 25.2 PS (18.5 kW; 24.8 HP)
Net: 24.2 PS (17.8 KW; 23.9 HP)
Torque 95.2 N·m (9.7 kg·m, 70.2 ft·lb)
Starter Electric
Oil capacity: 5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Coolant capacity: 6.0 L (6.34 US. qt, 5.28 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Integral type power steering
Brakes Mechanical wet disc
Transmission model
Transmission type Gear type with dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 17.2 kmh (10.7 mph) Reverse: 6.3 (3.9 mph)
Transmission oil capacity 27.0 L (28.5 US. qt, 23.8 Imp. qt.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 18.5 kmh (11.5 mph) Reverse: 16.6 (10.3 mph)
Transmission oil capacity 23.5 L (24.83 US. qt, 20.68 Imp. qt.)
Front tires Ag: 5-15 (2WD); 11.2-24 (4WD)
Rear tires Ag: 7.2-16 (2WD); 11.2-24 (4WD)
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity 870 kg (1,920 lbs)
PTO (Power take-off shaft)
Rear PTO type Gear: Transmission driven with overrunning
HST: Live-continuous running
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,205 psi (152 bar)
Pump flow 5.15 gpm (19.5 lpm)
Steering flow 3.13 gpm (11.8 lpm)
