Kubota M5-091

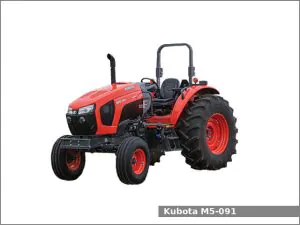

Kubota M5-091The Kubota M5-091 is a 2WD or 4WD utility tractor from the M5 series. This tractor has been manufactured by Kubota since 2015. The Kubota M5-091 is equipped with a 3.8 L (230.0 cu·in) four-cylinder gasoline engine and one of two transmissions: a partially synchronized transmission with 8 forward and 8 reverse gears and wet disc clutch or a partially synchronized transmission with 12 forward and 12 reverse gears and wet disc clutch.

The Kubota M5-091 utility tractor used the Kubota V3800CR-TIEF4 engine. It is a 3.8 L, 3,769 cm2, (230.0 cu·in) four-cylinder turbocharged intercooled gasoline engine with 100.0 mm (3.94 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 93.8 PS (69.0 kW; 92.5 HP) at 2,400 rpm of output power.

The Kubota M5-091 is equipped with power steering, hydraulic wet disc brakes, two-post foldable ROPS or Ultra Grand Cab II and 104.8 liters (27.7 US gal.; 23.1 Imp. gal) fuel tank.

Kubota M5-091 Specifications

General Specifications
ModelKubota M5-091
Length 2WD: 3,970 mm (156.3 in)
4WD: 3,950 mm (155.5 in)
Width 2WD: 1,960 mm (77.2 in)
4WD: 1,980 mm (78 in)
Height ROPS: 2,500 mm (98.4 in)
Cab: 2,540 mm (100 in)
Wheel base 2WD: 2,280 mm (89.8 in)
4WD: 2,250 mm (88.6 in)
Ground clearance (front axle) 2WD: 520 mm (20.5 in)
4WD: 470 mm (18.5 in)
Weight 2WD ROPS: 2,550 kg (5,622 lbs)
2WD Cab: 2,940 kg (6,482 lbs)
4WD ROPS: 2,740 kg (6,040 lbs)
4WD Cab: 3,130 kg (6,900 lbs)
Fuel tank capacity104.8 liters (27.7 US gal.; 23.1 Imp. gal)
Battery12V
Cabin typeTwo-post foldable ROPS or Ultra Grand Cab II
Engine
Engine modelKubota V3800CR-TIEF4
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeGasoline
Displacement3.8 L, 3,769 cm2, (230.0 cu·in)
Bore and stroke100.0 mm X 120.0 mm (3.94 in X 4.72 in)
Horsepower93.8 PS (69.0 kW; 92.5 HP) at 2,400 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Differential lockMechanical rear
Transmission model
Transmission typePartially synchronized with wet disc clutch
Gears8 forward and 8 reverse
Transmission model
Transmission typePartially synchronized with wet disc clutch
Gears12 forward and 12 reverse
Tires
Front tires Ag: 7.5-18 (2WD), 11.2-24 (4WD)
Rear tires Ag: 18.4-28
Three-Point Hitch
CategoryII
Control typePosition control and top-link draft sensing
Lift capacity (at 610 mm/24 in) 2,350 kg (5,182 lbs)
3,300 kg (7,275 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO speed540 or 540/540E rpm
Hydraulic system
Hydraulic type
Valves1 to 3
Pump flow ROPS: 15.9 gpm (60.2 lpm)
Cab: 17.0 gpm (64.4 lpm)
