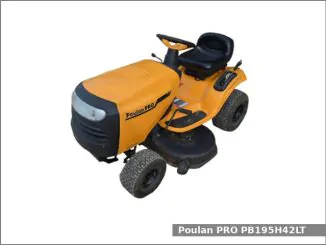

Poulan PB195H42LT

Poulan PB195H42LTThe Poulan PB195H42LT is a 2WD lawn tractor from the 300 series. This tractor was manufactured by Poulan (a part of Husqvarna) from 2007 to 2012. The Poulan PB195H42LT is equipped with a 0.5 L (30.5 cu·in) single-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Poulan PB195H42LT lawn tractor used the Briggs & Stratton 31P677 engine. It is a 0.5 L, 500 cm2, (30.5 cu·in) single-cylinder natural aspirated gasoline engine with 90.6 mm (3.57 in) of the cylinder bore and 77.8 mm (3.06 in) of the piston stroke. This engine produced 19.7 PS (14.5 kW; 19.5 HP) of output power.

The Poulan PB195H42LT is equipped with manual steering, mechanical shoe-on transaxle brakes, an open operator station, and 5.7 liters (1.5 US gal.; 1.3 Imp. gal) fuel tank.

Poulan PB195H42LT Specifications

General Specifications
Model Poulan PRO PB195H42LT
Length 1,850 mm (72.8 in)
Width 1,140 mm (44.9 in)
Height 870 mm (34.3 in)
Wheel base
Weight 240 kg (529 lbs)
Fuel tank capacity 5.7 liters (1.5 US gal.; 1.3 Imp. gal)
Battery 12V, 230CCA, Size U1R
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 31P677
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 500 cm2, (30.5 cu·in)
Bore and stroke 90.6 mm X 77.8 mm (3.57 in X 3.06 in)
Horsepower 19.7 PS (14.5 kW; 19.5 HP)
Starter Electric
Oil type SAE 30, 5W-30
Oil capacity: 1.5 L (1.6 US. qt, 1.3 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical shoe on transaxle
Transmission model
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Tires
Front tires Lawn/turf: 15×6.0-6
Rear tires Lawn/turf: 18×9.5-8
