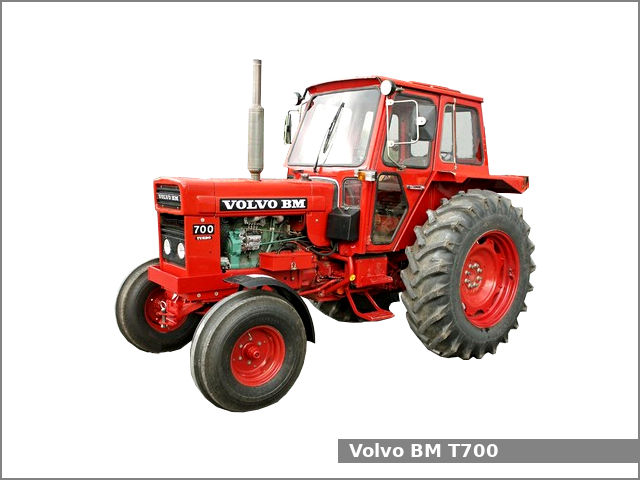

Volvo T700

Volvo T700The Volvo T700 is a 2WD or 4WD tractor manufactured by Volvo from 1976 to 1982. The Volvo T700 is equipped with a 4.2 L (256.0 cu·in) four-cylinder diesel engine and a two-speed power shift transmission with 16 forward and 4 reverse gears.

The Volvo T700 compact utility tractor used the Volvo TD42 engine. It is a 4.2 L, 4,195 cm2, (256.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 91.3 PS (67.1 kW; 90.0 HP) at 2,300 rpm of output power and 320.0 N·m (32.6 kg·m, 235.8 ft·lb) at 1,600 rpm of torque.

The Volvo T700 is equipped with power steering, cab (standard), and 95.0 liters (25.1 US gal.; 20.9 Imp. gal) fuel tank.

Volvo T700 Specifications

General Specifications
Model Volvo BM T700
Length 3,680 mm (144.9 in)
Width 2,210 mm (87 in)
Height 2,640 mm (103.9 in)
Wheel base 2,440 mm (96.1 in)
Weight 4,100 kg (9,039 lbs)
Fuel tank capacity 95.0 liters (25.1 US gal.; 20.9 Imp. gal)
Battery
Cabin type Cab (standard)
Engine
Engine model Volvo TD42
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.2 L, 4,195 cm2, (256.0 cu·in)
Bore and stroke 106.0 mm X 120.0 mm (4.17 in X 4.72 in)
Horsepower 91.3 PS (67.1 kW; 90.0 HP) at 2,300 rpm
Torque 320.0 N·m (32.6 kg·m, 235.8 ft·lb) at 1,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission model TracTrol
Transmission type Two-speed power shift
Gears 16 forward and 4 reverse
Speed Forward: 26.0 kmh (16.2 mph) Reverse: 10.8 kmh (6.7 mph)
Tires
Front tires Ag: 10.00-16
Rear tires Ag: 14.9-38
Three-Point Hitch
Category
Control type
Lift capacity (at ends) 2,750 kg (6,065 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Pump flow 9.5 gpm (36 lpm)
