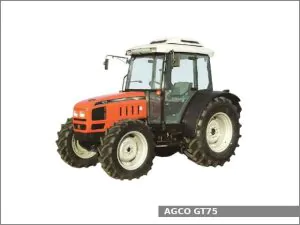

AGCO GT75

AGCO GT75The AGCO GT75 is a 2WD or 4WD utility tractor from the GT series. This tractor was manufactured by AGCO in Italy from 2004 to 2007. The AGCO GT75 is equipped with a 4.0 L (244.0 cu·in) four-cylinder diesel engine and a synchro-shuttle transmission with 16 forward and 8 reverse gears.

The AGCO GT75 utility tractor used the SAME Deutz-Fahr engine. It is a 4.0 L, 3,998 cm2, (244.0 cu·in) four-cylinder turbocharged diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 84.2 PS (61.9 kW; 83.0 HP) at 2,200 rpm of output power.

The AGCO GT75 is equipped with power steering, wet disc brakes, a two-post folding ROPS or cab (optional), and 89.7 liters (23.7 US gal.; 19.7 Imp. gal) fuel tank.

AGCO GT75 Specifications

General Specifications
Model AGCO GT75
Length 3,850 mm (151.6 in)
Width 1,940 mm (76.4 in)
Height 2,690 mm (105.9 in)
Wheel base 2WD: 2,230 mm (87.8 in)
4WD: 2,180 mm (85.8 in)
Weight 2WD ROPS: 2,500 kg (5,510 lbs)
4WD ROPS: 2,720 kg (6,000 lbs)
2WD Cab: 2,740 kg (6,040 lbs)
4WD Cab: 2,960 kg (6,525 lbs)

Fuel tank capacity 89.7 liters (23.7 US gal.; 19.7 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model SAME Deutz-Fahr
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.0 L, 3,998 cm2, (244.0 cu·in)
Bore and stroke 105.0 mm X 115.0 mm (4.13 in X 4.53 in)
Compression ratio 16.0:1
Horsepower 84.2 PS (61.9 kW; 83.0 HP) at 2,200 rpm
Torque 321.4 N·m (32.8 kg·m, 236.9 ft·lb) at 1,300 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Synchro-shuttle
Gears 16 forward and 8 reverse
Tires
Front tires
Rear tires
Three-Point Hitch
Category II
Control type
Lift capacity (at 610 mm/ 24 in) 1,600 kg (3,530 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 14.0 gpm (53 lpm)
Total flow 22.7 gpm (85.9 lpm)
