Allis Chalmers 6060

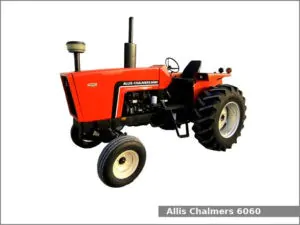

Allis Chalmers 6060The Allis Chalmers 6060 is a 2WD/4WD row-crop tractor from the 6000 series. This tractor was manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1980 to 1984. The Allis Chalmers 6060 is equipped with a 3.3 L (200.0 cu·in) four-cylinder diesel engine and a partially synchronized transmission with 8 forward and 2 reverse gears.

The Allis Chalmers 6060 row-crop tractor used the Allis Chalmers 433T engine. It is a 3.3 L, 3,277 cm2, (200.0 cu·in) four-cylinder turbocharged diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 108.0 mm (4.25 in) of the piston stroke. The compression ratio rating is 14.1:1. This engine produced 71.0 PS (52.2 kW; 70.0 HP) at 2,300 rpm of output power.

The AC 6060 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, four-post ROPS or Cab (optional), and 121.0 liters (32 US gal.; 26.6 Imp. gal) fuel tank.

Allis Chalmers 6060 Specifications

General Specifications
Model Allis Chalmers 6060
Length 3,720 mm (146.5 in)
Width 1,730 mm (68.1 in)
Height ROPS: 2,730 mm (107.5 in)
Cab: 2,620 mm (103.2 in)
Wheel base 2WD: 2,360 mm (92.9 in)
4WD: 2,330 mm (91.9 in)
Weight (ballasted) 4,060 kg (8,951 lbs)
Fuel tank capacity 121.0 liters (32 US gal.; 26.6 Imp. gal)
Battery One 12V, Two 12V (optional)
Cabin type Four-post ROPS or Cab (optional)
Engine
Engine model Allis Chalmers 433T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.3 L, 3,277 cm2, (200.0 cu·in)
Bore and stroke 98.0 mm X 108.0 mm (3.86 in X 4.25 in)
Compression ratio 14.1:1
Horsepower 71.0 PS (52.2 kW; 70.0 HP) at 2,300 rpm
Starter Electric
Oil capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Coolant capacity: 16.1 L (17 US. qt, 14.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Transmission model
Transmission type Partially synchronized
Gears 8 forward and 2 reverse
Speed Forward: 24.0 kmh (14.9 mph) Reverse: 11.1 (6.9 mph)
Transmission oil capacity 11.4 L (3 US. gal, 2.5 Imp. gal.)
Tires
Front tires Ag: 7.50-16 (2WD), 11.2-24 (4WD)
Rear tires Ag: 16.9-28 (2WD), 18.4-28 (4WD)
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at 610 mm / 24 in) 1,585 kg (3,495 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 4
Pump flow 11.4 gpm (43.2 lpm)
Total flow 19.0 gpm (71.9 lpm)
