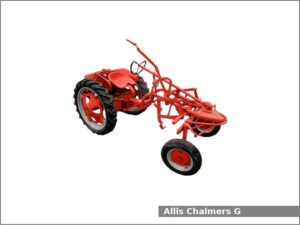

Allis Chalmers G

Allis Chalmers GThe Allis Chalmers G is a 2WD tool carrier manufactured by Allis Chalmers in Gadsden, Alabama, USA from 1948 to 1955. The Allis Chalmers G is equipped with a 1.0 L (62.0 cu·in) four-cylinder gasoline engine and non-synchronized gear transmission with 3 forward and 1 reverse gear.

The Allis Chalmers G tool carrier used the Continental AN62 engine. It is a 1.0 L, 1,016 cm2, (62.0 cu·in) four-cylinder natural aspirated gasoline engine with 60.0 mm (2.36 in) of the cylinder bore and 89.0 mm (3.5 in) of the piston stroke. The compression ratio rating is 5.75:1.

The Allis Chalmers G is equipped with manual steering, mechanical external expanding brakes, open operator station, and 19.0 liters (5 US gal.; 4.2 Imp. gal) fuel tank.

Allis Chalmers G Specifications

General Specifications
Model Allis Chalmers G
Length 2,900 mm (114.2 in)
Width
Height 1,410 mm (55.5 in)
Wheel base
Weight 635 kg (1,400 lbs)
Fuel tank capacity 19.0 liters (5 US gal.; 4.2 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model Continental AN62
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 1.0 L, 1,016 cm2, (62.0 cu·in)
Bore and stroke 60.0 mm X 89.0 mm (2.36 in X 3.5 in)
Compression ratio 5.75:1
Horsepower
Starter Electric
Coolant capacity: 6.2 L (6.6 US. qt, 5.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical external expanding
Transmission model
Transmission type Non-synchronized gear
Gears 3 forward and 1 reverse
Tires
Front tires Ag: 4.00-12
Rear tires Ag: 6-30
