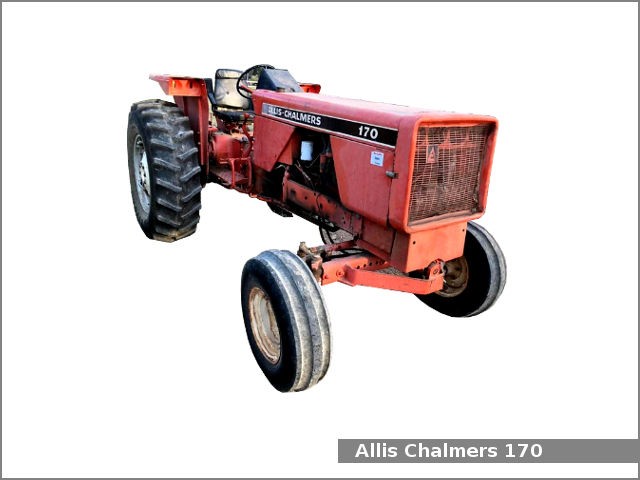

Allis Chalmers 170 farm tractor: review and specs

The Allis Chalmers 170 is a 2WD farm tractor manufactured by the Allis Chalmers from 1968 to 1973. The Allis Chalmers 170 is equipped with 3.9 L, (235.8 cu·in) four-cylinder diesel engine or 3.7 L, (225.97 cu·in) four-cylinder gasoline engine and two-speed power shift transmission with 8 forward and 2 reverse gears.

The Allis Chalmers 170 farm tractor used 3.9 L, 3,864 cm², (235.8 cu·in) four-cylinder Perkins 4.236 diesel engine with 98.5 mm (3.88 in) of cylinder bore and 127.0 mm (5 in) of piston stroke or 3.7 L, 3,703 cm², (225.97 cu·in) four-cylinder Allis Chalmers G226 gasoline engine with 102.0 mm (4.02 in) of cylinder bore and 114.0 mm (4.5 in) of piston stroke. The Allis Chalmers 170 is equipped with hydraulic power assist steering, differential mechanical contracting band and disc brakes, open operator station and 70.0 liters (18 US gal.; 15 Imp. gal) fuel tank.

Allis Chalmers 170 Specifications

General Specifications
Model	Allis Chalmers 170
Length	3,810 mm (150 in)
Width	1,980 mm (78 in)
Height	1,490 mm (58.7 in)
Wheel base	2,420 mm (95.3 in)
Weight	2,600 kg (5,732 lbs)
Fuel tank capacity	70.0 liters (18.5 US gal.; 15.5 Imp. gal)
Battery	12V 60A for gas, 95A for diesel
Cabin type	Open operator station
Engine
Engine model	Perkins 4.236
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	4
Fuel type	Diesel
Displacement	3.9 L, 3,864 cm², (235.8 cu·in)
Bore and stroke	98.5 mm X 127.0 mm (3.88 in X 5 in)
Compression ratio	16.0:1
Horsepower	–
Starter	Electric
Oil capacity:	6.6 L (6.97 US. qt, 5.81 Imp. qt.)
Coolant capacity:	14.2 L (15 US. qt, 12.49 Imp. qt.)
Engine
Engine model	Allis Chalmers G226
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	4
Fuel type	Gasoline
Displacement	3.7 L, 3,703 cm², (225.97 cu·in)
Bore and stroke	102.0 mm X 114.0 mm (4.02 in X 4.49 in)
Compression ratio	8.0:1
Horsepower	–
Starter	Electric
Oil capacity:	5.7 L (6.00 US. qt, 5.02 Imp. qt.)
Coolant capacity:	14.2 L (15 US. qt, 12.49 Imp. qt.)

Transmission and chassis
Chassis	4×2 2WD
Steering type	Hydraulic power assist
Brakes	Differential mechanical contracting band and disc
Clutch	Dry disc
Transmission model	Power Director
Transmission type	Two-speed power shift
Gears	8 forward and 2 reverse
Speed	Forward: 21.4 kmh (13.3 mph) Reverse: 6.1 (3.8 mph)
Transmission oil capacity	22.7 L (23.99 US. qt, 19.97 Imp. qt.)
Tires
Front tires	6.00×16; 6.50×16; 7.50×16; 7.50×20 (cane); 9.00×10
Rear tires	16.9-28

Three-Point Hitch
Caterogy	II
Control type	–
Lift capacity	–
PTO (Power take-off shaft)
Rear PTO type	Live
Rear PTO spped	540 rpm
Hydraulic system
Hydraulic type	Open
Hydraulic capacity	24.6 L (25.99 US. qt, 21.64 Imp. qt.)
Pressure	2,000 psi (137.9 bar)
Valves	1
Pump flow	18.3 gpm (69.3 lpm)
Steering flow	6.0 gpm (22.7 lpm)
