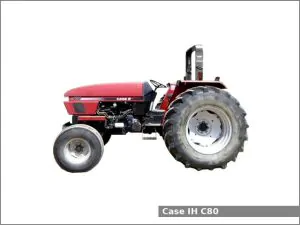

The CaseIH C80 is a 2WD or 4WD utility tractor from the CX Utility series. This tractor was manufactured by CaseIH in Doncaster, England from 1998 to 2002. The CaseIH C80 is equipped with a 4.0 L (243.5 cu·in) four-cylinder diesel engine and one of three transmission variants.
The CaseIH C80 utility tractor used the Perkins 1004.40T engine. It is a 4.0 L, 3,990 cm2, (243.5 cu·in) four-cylinder turbocharged diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.25:1. This engine produced 85.1 PS (62.6 kW; 84.0 HP) at 2,200 rpm of output power and 343.1 N·m (35 kg·m, 252.9 ft·lb) at 1,400 rpm of torque.
The CaseIH C80 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, two-post ROPS with straddle platform, and 75.7 liters (20 US gal.; 16.7 Imp. gal) fuel tank.
CaseIH C80 Specifications
| General Specifications | |
| Model | CaseIH C80 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base |
2WD: 2,140 mm (84.3 in) 4WD: 2,230 mm (87.8 in) |
| Weight (shipping) |
2WD: 2,695 kg (5,941 lbs) 4WD: 3,020 kg (6,658 lbs) |
| Fuel tank capacity | 75.7 liters (20 US gal.; 16.7 Imp. gal) |
| Battery | 12V, CCA 650A |
| Cabin type | Two-post ROPS with straddle platform |
| Engine | |
| Engine model | Perkins 1004.40T |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 4.0 L, 3,990 cm2, (243.5 cu·in) |
| Bore and stroke | 100.0 mm X 127.0 mm (3.94 in X 5 in) |
| Compression ratio | 17.25:1 |
| Horsepower | 85.1 PS (62.6 kW; 84.0 HP) at 2,200 rpm |
| Torque | 343.1 N·m (35 kg·m, 252.9 ft·lb) at 1,400 rpm |
| Starter | Electric |
| Oil capacity: | 8.8 L (9.3 US. qt, 7.7 Imp. qt.) |
| Coolant capacity: | 16.0 L (16.9 US. qt, 14.1 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD (optional) |
| Steering type | Hydrostatic power |
| Brakes | Differential hydraulic wet disc |
| Differential lock | Mechanical |
| Transmission model | – |
| Transmission type | – |
| Gears | 8 forward and 4 reverse |
| Transmission oil capacity |
2WD: 34.1 L (9 US. gal, 7.5 Imp. gal.) 4WD: 36.5 L (9.6 US. gal, 8 Imp. gal.) |
| Transmission model | – |
| Transmission type | Partial power shift with dry disc clutch |
| Gears | 16 forward and 8 reverse |
| Speed | Forward: 39.2 kmh (24.4 mph) Reverse: 35.5 kmh (22.1 mph) |
| Transmission oil capacity |
2WD: 34.1 L (9 US. gal, 7.5 Imp. gal.) 4WD: 36.5 L (9.6 US. gal, 8 Imp. gal.) |
| Transmission model | – |
| Transmission type | – |
| Gears | 8 forward and 8 reverse |
| Tires | |
| Front tires | Ag: 7.50-16 |
| Rear tires | Ag: 16.9-30 |
| Three-Point Hitch | |
| Category | II/I |
| Control type | Mechanical |
| Lift capacity |
1,662 kg (3,665 lbs) Optional: 2,310 kg (5,097 lbs) 2311 kg |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent with hydraulic wet disc clutch |
| Rear PTO speed | 540, 540/1000 (optional dual shaft) |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 34.1 L (9 US. gal, 7.5 Imp. gal.) |
| Pressure | 2500 psi (172.4 bar) |
| Valves | 0 to 3 |
| Pump flow |
12.7 gpm (48.1 lpm) Optional: 15.0 gpm (56.8 lpm) |
| Total flow |
15.7 gpm (59.4 lpm) Optional: 18.0 gpm (68.1 lpm) |
