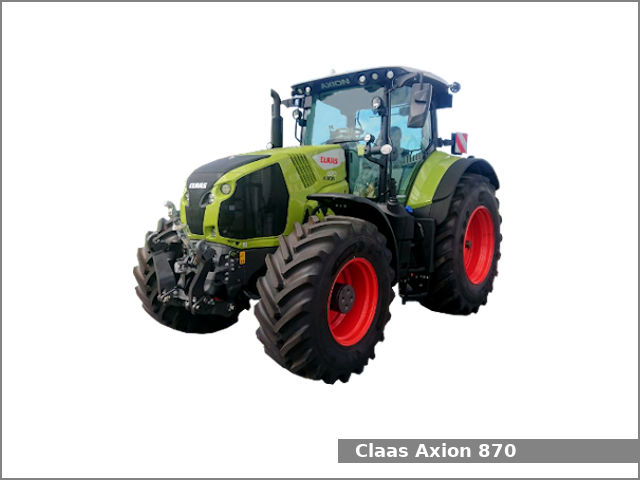

Claas Axion 870

Claas Axion 870The Claas Axion 870 is a 4WD row-crop tractor manufactured by Claas from 2016. The Claas Axion 870 is equipped with a 6.7 L (411.2 cu·in) six-cylinder diesel engine and a continuously variable transmission transmission with infinite forward and reverse gears.

The Axion 870 row-crop tractor used the FPT engine. It is a 6.7 L, 6,738 cm2, (411.0 cu·in) six-cylinder turbocharged intercooled diesel engine with 104.0 mm (4.09 in) of the cylinder bore and 132.0 mm (5.2 in) of the piston stroke. This engine produced 273.8 PS (201.3 kW; 270.0 HP) at 2,150 rpm of output power and 1276.1 N·m (130.1 kg·m, 940.5 ft·lb) at 1,400 rpm of peak torque.

The Claas Axion 870 is equipped with power steering, wet disc brakes, cab (standard), and 455.0 liters (120.2 US gal.; 100.1 Imp. gal) fuel tank.

Claas Axion 870 Specifications

General Specifications
ModelClaas Axion 870
Length5,420 mm (213.4 in)
Width–
Height (cab)3,210 mm (126.4 in)
Wheel base2,970 mm (116.9 in)
Ground clearance Front axle: 460 mm (18.1 in)
Rear axle: 520 mm (20.5 in)
Weight9,050 kg (19,952 lbs)
Fuel tank capacity455.0 liters (120.2 US gal.; 100.1 Imp. gal)
Battery12V
Cabin typeCab (standard)
Engine
Engine modelFPT
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement6.7 L, 6,738 cm2, (411.0 cu·in)
Bore and stroke104.0 mm X 132.0 mm (4.09 in X 5.2 in)
Horsepower273.8 PS (201.3 kW; 270.0 HP) at 2,150 rpm
Torque1276.1 N·m (130.1 kg·m, 940.5 ft·lb) at 1,400 rpm
StarterElectric
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typePower
BrakesWet disc
Transmission modelCMATIC
Transmission typeContinuously variable transmission
GearsInfinite forward and reverse
Tires
Front tiresAg: –
Rear tiresAg: –
PTO (Power take-off shaft)
Front PTO typeOptional
Front PTO speed1000 rpm
Rear PTO typeIndependent
Rear PTO speed540/1000 (1.375), 540/540E/1000, 540E/1000/1000E rpm
Hydraulic system
Hydraulic typeLoad sensing
Valves3 to 7
Pump flow 29.1 gpm (110.2 lpm)
39.6 gpm (149.9 lpm)
